Product no. X0037

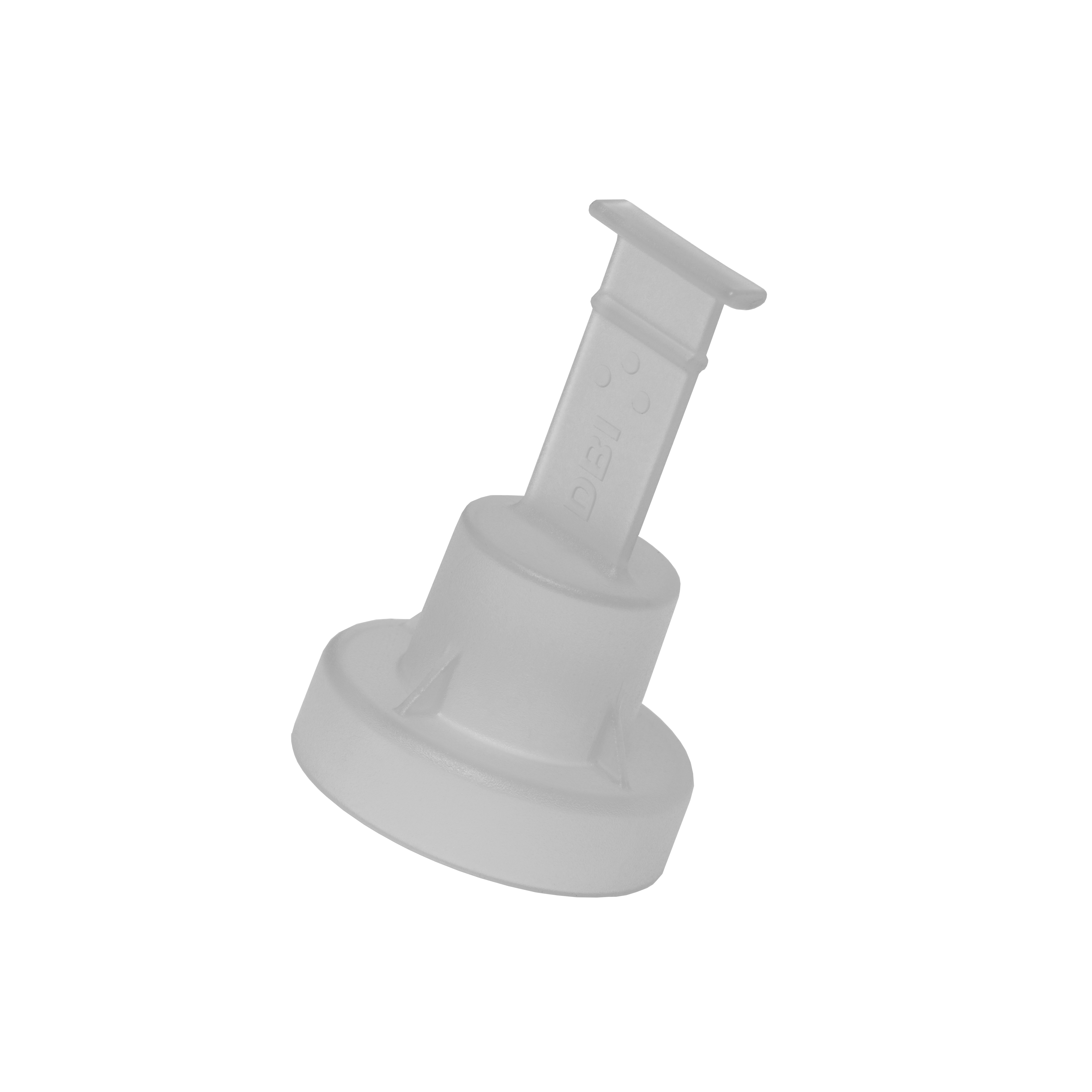

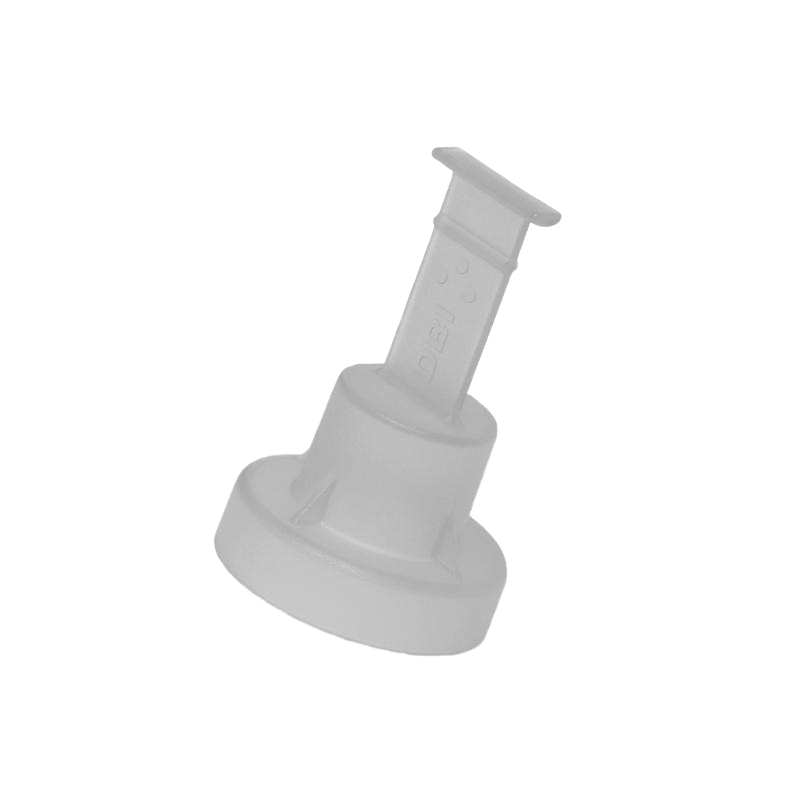

Caps with handle (GF)
Designed to protect fluid and fuel line interfaces in automotive systems, GF range offers versatile protection and easy handling. An ergonomic grip tab enables quick removal- even with gloves.
Ideal for these applications:
All benefits
Easy removal
pull-tab design for quick handling
Pressure relief
built-in ventilation cutouts
Secure grip
ergonomic even with gloves
|
|
CO2
|

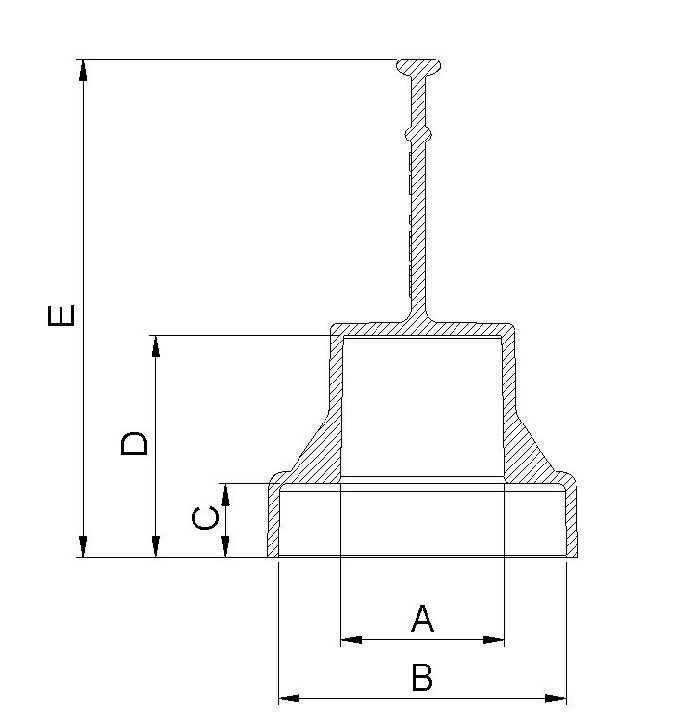

A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
F
mm
|
G
mm
|
H
mm
|
|---|
| GF0073A-AA20B | Yellow | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| GF0079A-TD40A | Black | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| GF0085A-AA10B | Natural | Recycled LDPE | 0 | 8.54 | 19.05 | 5.2 | 15.45 | 34.5 | 0 | 0 | 0 |
|
| GF0089A-AE60B | Green | EVA | 0 | 10.2 | 5.8 | 11 | 4 | 1.5 | 1 | 27.5 | 9.9 |
|
| GF0098A-EA00B | Red | HDPE | 0 | 41 | 9.7 | 22 | 26 | 0 | 0 | 0 | 0 |
|
| GF0116A-AA10B | Natural | Recycled LDPE | 0 | 11.72 | 20.6 | 5.13 | 15.4 | 34.5 | 0 | 0 | 0 |
|
| GF0125A-AA20A | Yellow | 0 | 12.5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| GF0173A-AA10B | Natural | Recycled LDPE | 0 | 17.45 | 27.41 | 5.1 | 15.2 | 34.3 | 0 | 0 | 0 |
|
| GF0175Z-AA20A | Yellow | Recycled LDPE | 0 | 21.4 | 17.5 | 8.1 | 0.89 | 0 | 13.5 | 26.34 | 13 |
|
| GF0220A-AA40A | Black | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|
|
| GF0380A-AA10A | Natural | Recycled LDPE | 0 | 9.4 | 64.5 | 13.3 | 19.5 | 39.1 | 0 | 0 | 0 |
|
| GR0045A-TS40A | Black | 0 | 4.6 | 0 | 13.2 | 5.2 | 0 | 0 | 0 | 0 |
|
|
| GR0062A-AA10A | Natural | 0 | 6.2 | 0 | 19.3 | 6.7 | 0 | 0 | 0 | 0 |
|
|
| GR0078A-AA20A | Yellow | 0 | 7.8 | 0 | 18.3 | 8.2 | 0 | 0 | 0 | 0 |
|
|
| GR0080A-AA00A | Red | 0 | 7.9 | 0 | 19.6 | 8.2 | 0 | 0 | 0 | 0 |
|
|
| GR0095A-AV10A | Natural | 0 | 9.45 | 0 | 21.5 | 10 | 0 | 0 | 0 | 0 |
|
|
| GR0098A-AA00A | Red | 0 | 9.8 | 0 | 20.45 | 10.2 | 0 | 0 | 0 | 0 |
|
|
| GR0100A-AA00A | Red | 0 | 9.9 | 0 | 21.4 | 10.2 | 0 | 0 | 0 | 0 |
|
|
| GR0122A-AA10A | Natural | 0 | 12.2 | 0 | 24.5 | 12.85 | 0 | 0 | 0 | 0 |
|
|
| GR0125A-AA00A | Red | 0 | 12.5 | 0 | 23.7 | 13 | 0 | 0 | 0 | 0 |
|
