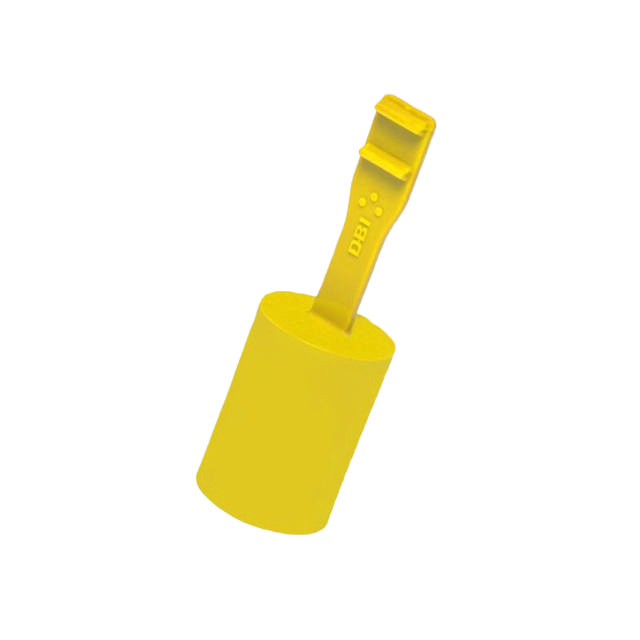

DETAIL2412 Pull-Out Cap for Fuel & Management Systems
DETAIL2594 Exhaust Gas Management System protection
DETAIL2595 GA Center Pull Out Caps_technical drawing
Product no. X0034

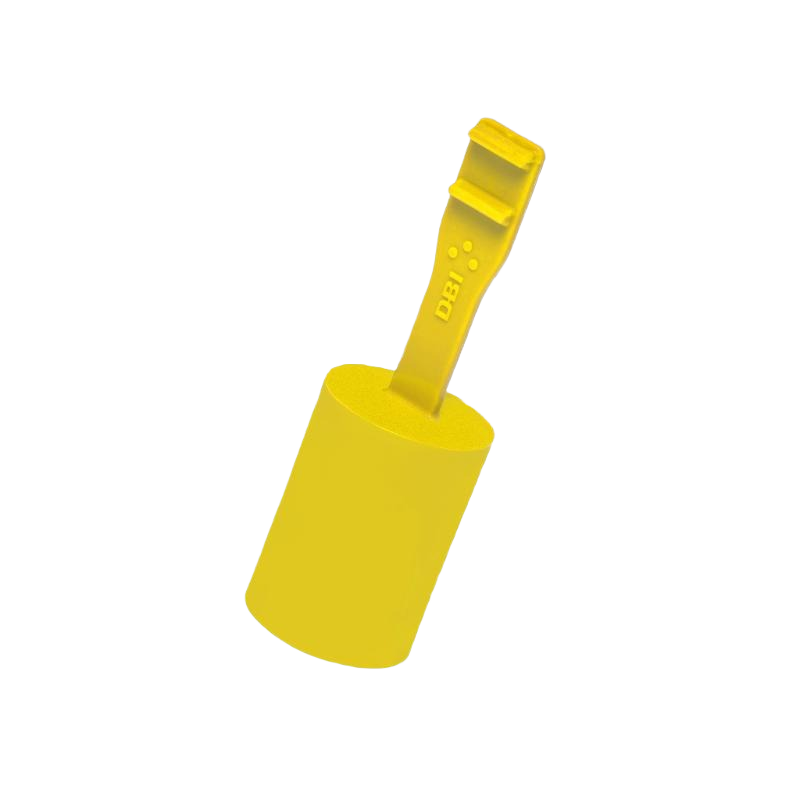

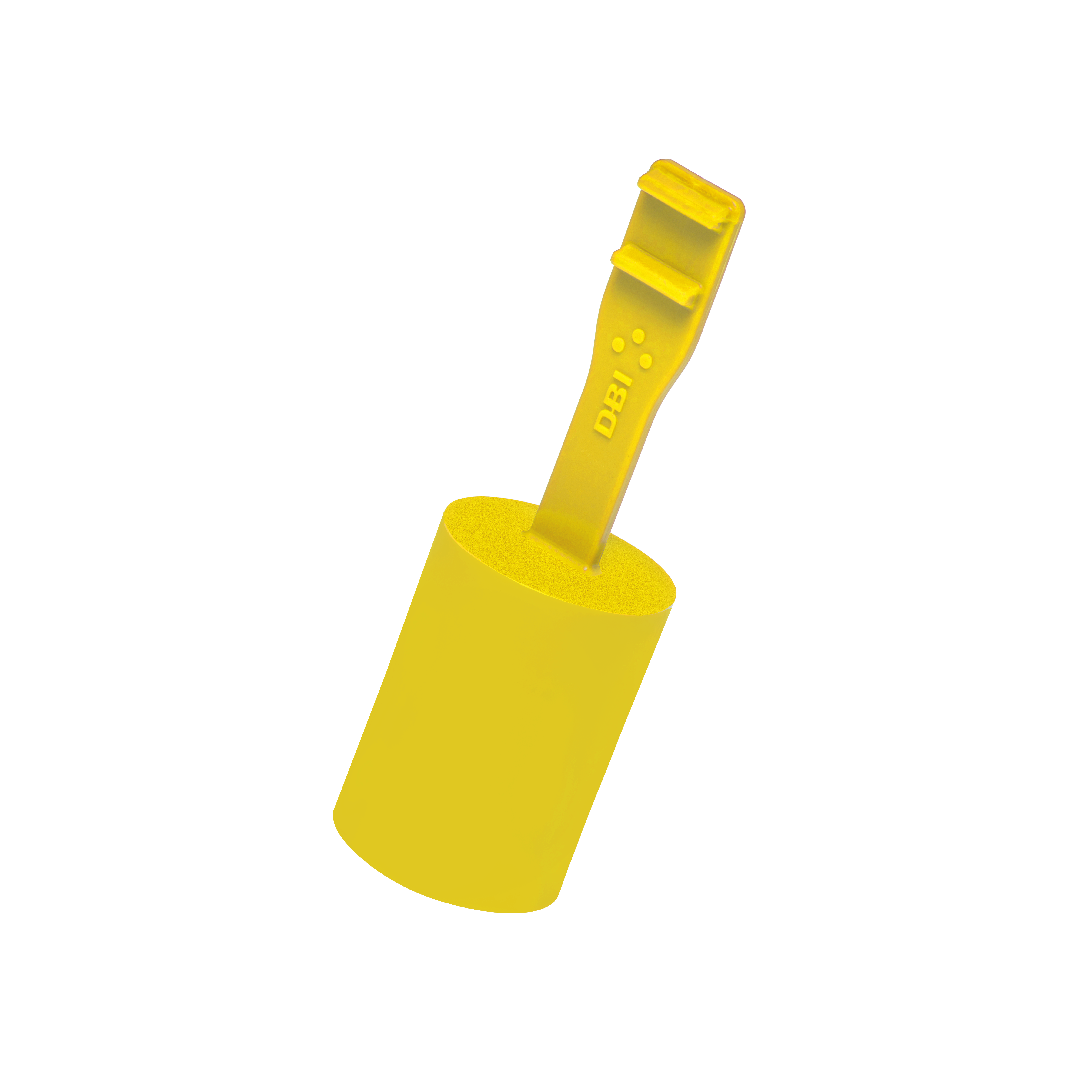

Center Pull-Out Caps (GA)

GA range protect studs, nipples, and pipes across industries. Their flexible design absorbs tolerance variations through optimized wall thickness, special material, and ribbed deformation zones.

Try before you decide
Request sample
Variants
View products
In stock
Sign in to buy
All benefits
Flexible sealing
absorbs tolerance variation
Internal ribs
ensure tight grip and deformation control
Wide application
covers various industrial needs
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:

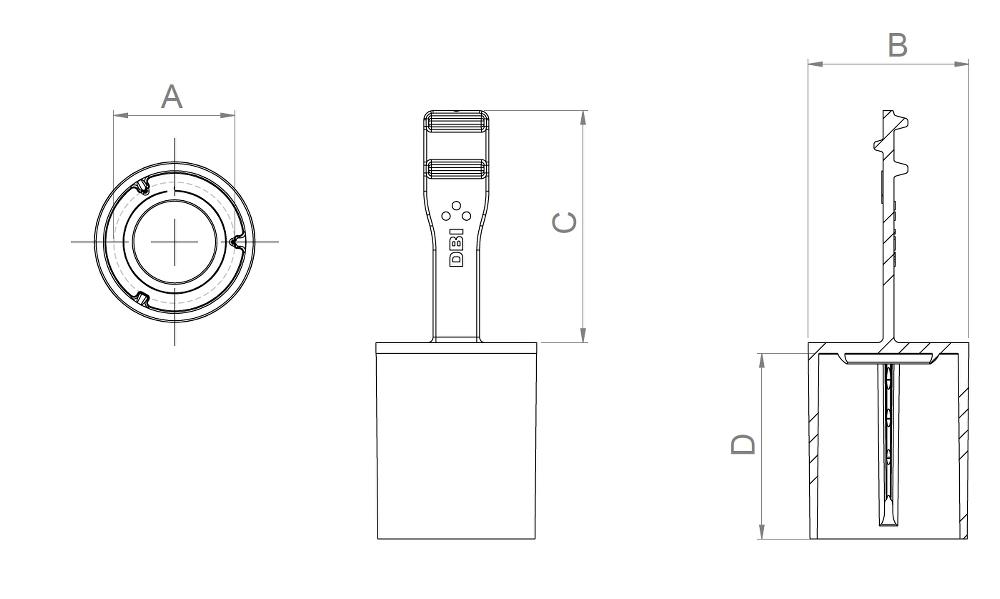

Technical drawing GA range_PDS
CO2
A mm
B mm
C mm
D mm
Suitable for External Diameters
Suitable for Threaded Counterparts
GA0060A-AE20A Yellow EVA 0 4.86 9 25 20 5,00 - 6,80 5,00 - 6,30
GA0080A-AE20A Yellow EVA 0 6.87 11.2 25 20 7,00 - 8,80 7,00 - 8,30
GA0090A-AE20A Yellow EVA 0 7.87 12 25 20 8,00 - 9,80 8,00 - 9,30
GA0100A-AE20A Yellow EVA 0 8.86 13 25 20 9,00 - 10,80 9,00 - 10,30
GA0120A-AE20A Yellow EVA 0 10.86 15.4 25 20 11,00 - 12,80 11,00 - 12,30
GA0120B-AE20A Yellow EVA 0 12.5 15.2 25 20 11,00 - 12,80 11,00 - 12,30
GA0130A-AE20A Yellow EVA 0 11.87 16.3 25 20 12,00 - 13,80 12,00 - 13,30
GA0140A-AE20A Yellow EVA 0 12.87 17.3 25 20 13,00 - 14,80 13,00 - 14,30
GA0160A-AA20A Yellow Recycled LDPE 0 14.77 19.4 25 20 15,00 - 16,80 15,00 - 16,30
GA0160A-AE20A Yellow EVA 0 14.86 19.4 25 20 15,00 - 16,80 15,00 - 16,30
GA0170A-AE20A Yellow Recycled LDPE 0 15.9 20.6 25 20 16,00- 17,80 16,00- 17,30
GA0180A-AE20A Yellow EVA 0 16.86 21.7 25 20 17,00 - 18,80 17,00 - 18,30
GA0180B-AE20A Yellow EVA 0 16.86 21.7 25 20 17,00 - 18,80 17,00-18,30
GA0190A-AE20A Yellow EVA 0 17.9 22.8 25 20 18,00- 19,80 18,00- 19,30
GA0200A-AE20A Yellow EVA 0 18.87 23.6 25 20 19,00 - 20,80 19,00 - 20,30
GA0220A-AE20A Yellow EVA 0 20.87 25.8 25 20 21,00 - 22,80 21,00 - 22,30
