DETAIL2478 PVC Pipe protector
DETAIL2657 PVC pipe protector_Technical drawing
DETAIL2658 Plastic pipes protection, including PVC and PE with optional ventilation holes
Product no. X0058

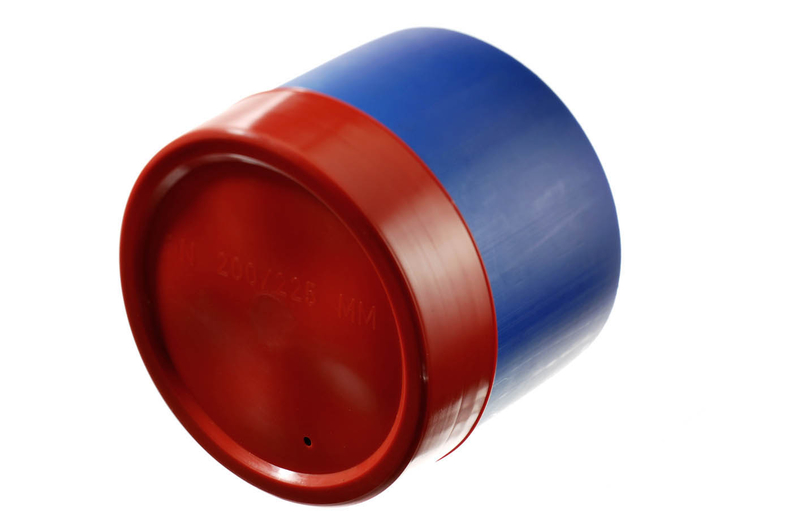

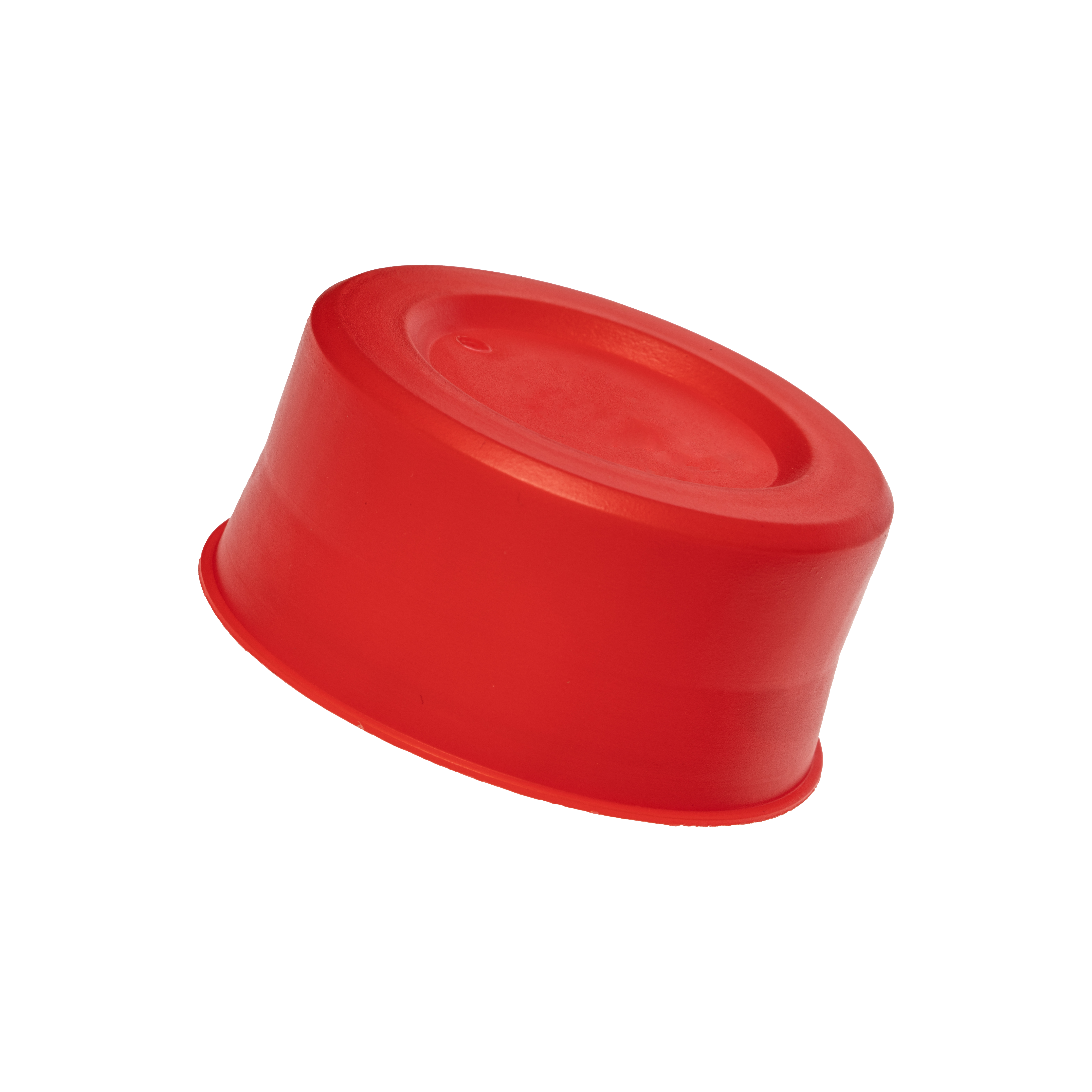

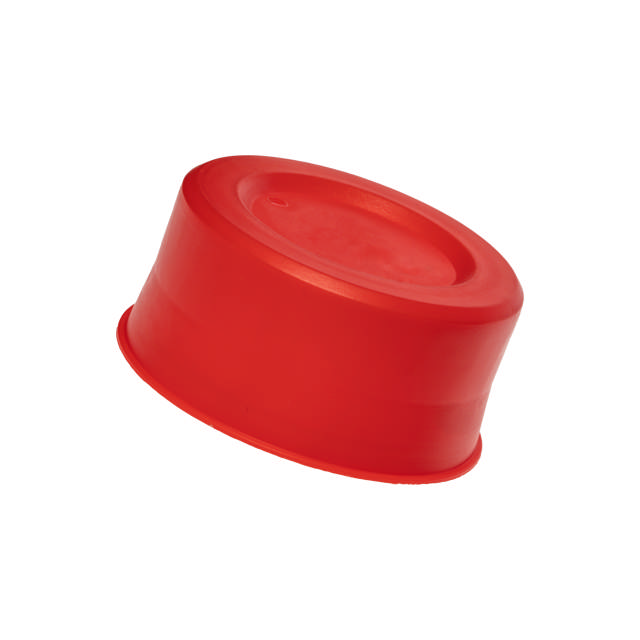

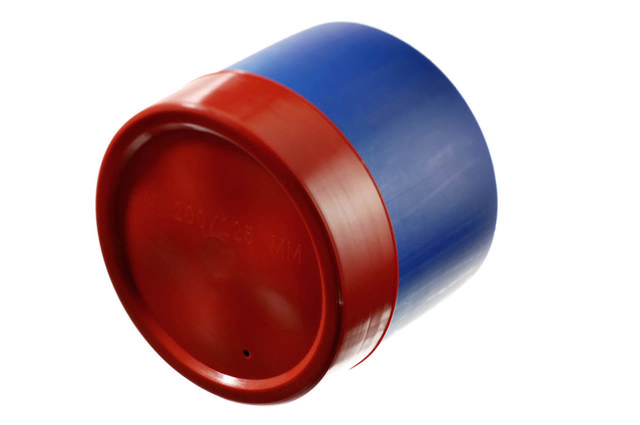

PVC Pipe Protectors (WA/WR)

Designed to protect plastic pipes, including PVC and PE. WR range fits both plain and connector ends, simplifying storage. WA range offers universal protection with full-length insertion. Both types include ventilation holes to release internal pressure and support outdoor storage.

Try before you decide
Request sample
Variants
View products
In stock
Sign in to buy
All benefits
Outdoor-ready
ideal for exposed storage
Pressure-safe
vent holes prevent internal buildup
Versatile fit
protects plain and connector ends
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:

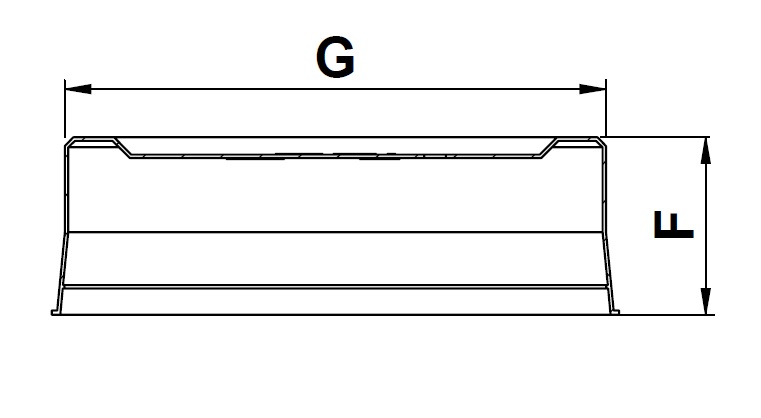

Technical drawing WAWR range_PDS
CO2
A mm
B mm
C mm
D mm
D2 mm
E mm
F mm
G mm
H mm
WA0500L-BA00A Red LLDPE 0 0 0 0 0 0 0 24.5 50 0
WA0500L-BA90A Blue 0 0 0 0 0 0 0 24.5 50 0
WA0630A-BA10Y Natural LLDPE 0 0 0 0 0 0 0 24.8 63 0
WA0630L-BA00A Red LLDPE 0 0 0 0 0 0 0 24.8 63 0
WA0630L-BA90A Blue 0 0 65 45 52 63 67 25.6 0.8 12
WA0630L-BA90S Blue 0 0 0 0 0 0 0 24.8 63 0
WA0750A-BA00A Red LLDPE 0 0 0 0 0 0 0 29.5 74.5 0
WA0750L-BA00A Red LLDPE 0 0 0 0 0 0 0 29.5 74.5 0
WA0750L-BA90S Blue 0 0 0 0 0 0 0 29.5 74.5 0
WA0900A-BA10Y Natural LLDPE 0 0 0 0 0 0 0 35.2 90 0
WA0900L-BA00A Red LLDPE 0 0 0 0 0 0 0 35.2 90 0
WA0900L-BA90A Blue 0 0 0 0 0 0 0 35.2 90 0
WA1100A-BA00A Red LLDPE 0 0 0 0 0 0 0 37.2 110 0
WA1100L-BA00A Red LLDPE 0 0 0 0 0 0 0 37.2 110 0
WA1100L-BA90A Blue 0 0 0 0 0 0 0 37.2 110 0
WA1250A-BA00A Red LLDPE 0 0 0 0 0 0 0 40 125 0
WA1250L-BA00A Red LLDPE 0 0 0 0 0 0 0 40 125 0
WA1250L-BA90A Blue 0 0 0 0 0 0 0 40 125 0
WA1400L-BA00A Red LLDPE 0 0 0 0 0 0 0 43.5 139 0
WA1600A-BA10Y Natural LLDPE 0 0 0 0 0 0 0 44.5 158.7 0
WA1600L-BA00A Red LLDPE 0 0 0 0 0 0 0 44.5 158.7 0
WA1600L-BA90A Blue 0 0 0 0 0 0 0 44.5 158.7 0
WA2000A-BA00A Red LLDPE 0 0 0 0 0 0 0 54.7 199 0
WA2000L-BA00A Red LLDPE 0 0 0 0 0 0 0 54.7 199 0
WA2000L-BA90A Blue 0 0 0 0 0 0 0 54.7 199 0
WA2250A-BA10Y Natural LLDPE 0 0 0 0 0 0 0 57.9 223.2 0
WA2250L-BA00A Red LLDPE 0 0 0 0 0 0 0 57.9 223.2 0
WA2250L-BA90A Blue 0 0 0 0 0 0 0 57.9 223.2 0
WA2500L-BA00A Red LLDPE 0 0 0 0 0 0 0 60.7 250 0
WA2500L-BA90A Blue 0 0 0 0 0 0 0 60.7 250 0
WA2800L-BA00A Red LLDPE 0 0 0 0 0 0 0 62.2 279 0
WA3150L-BA00A Red LLDPE 0 0 0 0 0 0 0 65.8 315 0
WA3150L-BA90A Blue 0 0 0 0 0 0 0 65.8 315 0
WA4000L-BA00A Red LLDPE 0 0 0 0 0 0 0 68.4 400 0
WA4000L-BA90C Blue 0 0 0 0 0 0 0 68.4 400 0
WA4500L-BA00A Red LLDPE 0 445 455 360 372 0 460 70 1.6 30
WA4500L-BA90C Blue 0 0 0 0 0 0 0 68.4 445 0
WR1100L-BA00A Red LLDPE 0 0 0 0 0 0 0 30 107.3 0
WR1400L-BA00A Red LLDPE 0 0 0 0 0 0 0 32.8 137 0
WR1600L-BA00A Red LLDPE 0 0 0 0 0 0 0 38.2 158.3 0
WR1600L-BA90C Blue LLDPE 0 0 0 0 0 0 0 38.2 158.3 0
WR2000L-BA00A Red LLDPE 0 0 0 0 0 0 0 41.7 200 0
WR2250L-BA00A Red LLDPE 0 0 0 0 0 0 0 45.6 224.9 0
WR2800L-BA00A Red LLDPE 0 0 0 0 0 0 0 55.5 277 0
WR3150L-BA00A Red LLDPE 0 0 0 0 0 0 0 54.2 313 0
WR5000L-BA00A Red LLDPE 0 0 0 0 0 0 0 80.9 503 0
WR5000L-BA90S Blue 0 0 0 0 0 0 0 80.9 503 0
