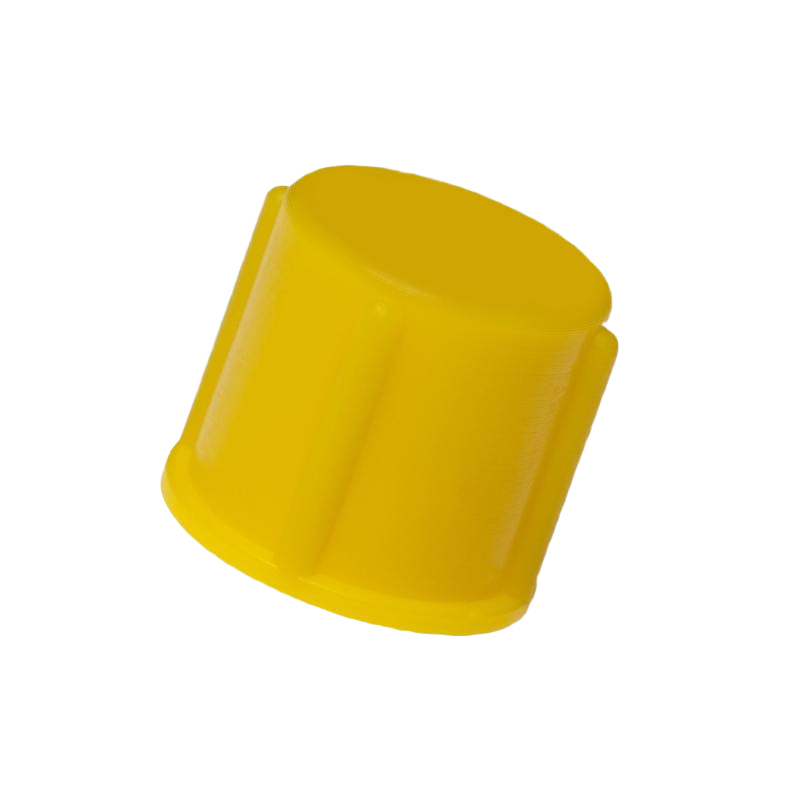

DETAIL2343 Threaded Metric Cap
DETAIL2569 Protection for Common rails
DETAIL2336 AA Technical drawing of a threaded cap with dimensions
Product no. X0059

Threaded Caps (AA)

General closure in conical shape for multi-dimensional fit as a cap or plug for internal or external protection. It is therefore ideal for every kind of connection port and inspection holes or fittings in hydraulic applications. Read more

Try before you decide
Request sample
Variants
View products
In stock
Sign in to buy
All benefits
Custom-fit solution
available in soft or hard materials
Leak-free performance
optional sealing ensures a secure closure
Tool-friendly design
easy install/removal with optional washer
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:
Technical drawing AA range_PDS
CO2
B mm
C mm
D mm
Fits thread
AA0801A-EA20A Yellow 0 10.5 9 12 M8 x 1
AA1002A-GA10A Natural PA66 0 11 10 14 M10 x 1
AA1201A-BA20A Yellow LLDPE 0 12.1 10.3 16.9 M12 x 1
AA1201A-EA20A Yellow HDPE 0 12 10.3 17 M12 x 1
AA1202A-BA20A Yellow LLDPE 0 12 10 17 M12 x 1.5
AA1202A-EA20A Yellow HDPE 0 11.9 10.1 17 M12 x 1.5
AA1298A-AA20A Yellow Recycled LDPE 0 12.7 14.2 16.4 M12 x 1.5
AA1299A-AA20A Yellow Recycled LDPE 0 14.2 12.7 16.4 M12 x 1
AA1401A-BA20A Yellow LLDPE 0 11.9 10.6 18.8 M14 x 1.5
AA1401A-EA20A Yellow HDPE 0 11.9 10.5 19.1 M14 x 1.5
AA1601A-BA20A Yellow LLDPE 0 13.5 11.8 20.9 M16 x 1.5
AA1601A-EA20A Yellow HDPE 0 13.5 12.4 20.9 M16 x 1.5
AA1602A-BA20A Yellow LLDPE 0 25.9 23.9 20.3 M16 x 1.5
AA1801A-BA20A Yellow LLDPE 0 12.3 10.5 22.2 M18 x 1.5
AA1801A-EA20A Yellow HDPE 0 12.5 10.4 22.4 M18 x 1.5
AA2001A-BA20A Yellow LLDPE 0 15.2 13.6 25.4 M20 x 1.5
AA2001A-EA20A Yellow HDPE 0 15.3 13.9 25.3 M20 x 1.5
AA2201A-BA20A Yellow LLDPE 0 14.7 13.9 27 M22 x 1.5
AA2201A-EA20A Yellow HDPE 0 14.5 13.7 26.8 M22 x 1.5
AA2201D-EA20A Yellow HDPE 0 14.5 13.7 26.8 M22 x 1.5
AA2401A-BA20A Yellow LLDPE 0 13.5 12 29.5 M24 x 1.5
AA2401A-EA20A Yellow HDPE 0 13.5 12 29.5 M24 x 1.5
AA2499A-AA20A Yellow Recycled LDPE 0 15.5 14.2 24.7 M24 x 1.5
AA2699A-AA20A Yellow Recycled LDPE 0 14.5 12.5 33 M26 x 1.5
AA2699A-EA20A Yellow HDPE 0 15.3 13.5 30.8 M26 x 1.5
AA2799A-AA20A Yellow Recycled LDPE 0 15.3 13.5 32 M27 x 2
AA3001A-BA20A Yellow LLDPE 0 14.2 12.5 36 M30 x 2
AA3001A-EA20A Yellow HDPE 0 14.5 12.8 36 M30 x 2
AA3099A-EA20A Yellow HDPE 0 16.3 14.5 35 M30 x 1.5
AA3401A-EA20A Yellow HDPE 0 9.7 8.1 38.9 M34x1,5
AA3602A-EA20A Yellow HDPE 0 17 15.1 41.8 M36 x 2
AA3602E-EA20A Yellow HDPE 0 17 15.1 41.8 M36 x 2
AA3899A-EA20A Yellow HDPE 0 17 15 44 M38 x 1.5
AA4201A-EA20A Yellow HDPE 0 16.3 14.8 49.1 M42 x 2
AA4598A-EA20A Yellow HDPE 0 20.3 18.7 51 M45 x 2
AA5201A-BA20A Yellow HDPE 0 18.5 16.7 59.2 M52 x 2
AA5201A-EA20A Yellow HDPE 0 18.7 16.9 59.3 M52 x 2
