Product no.

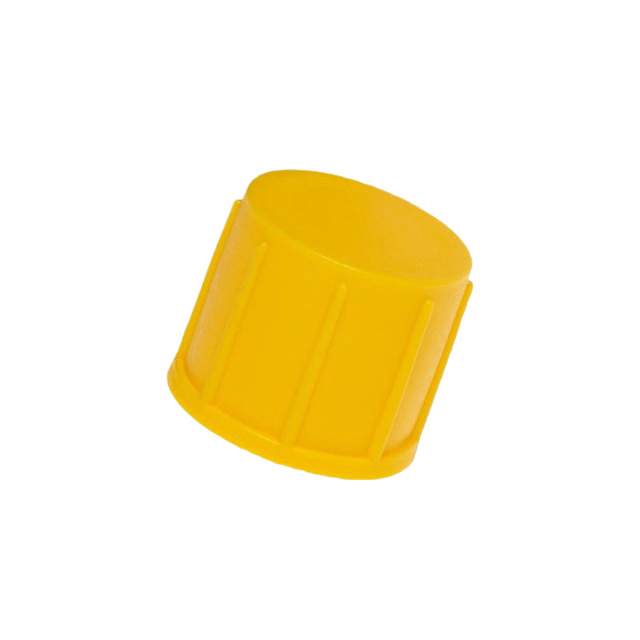

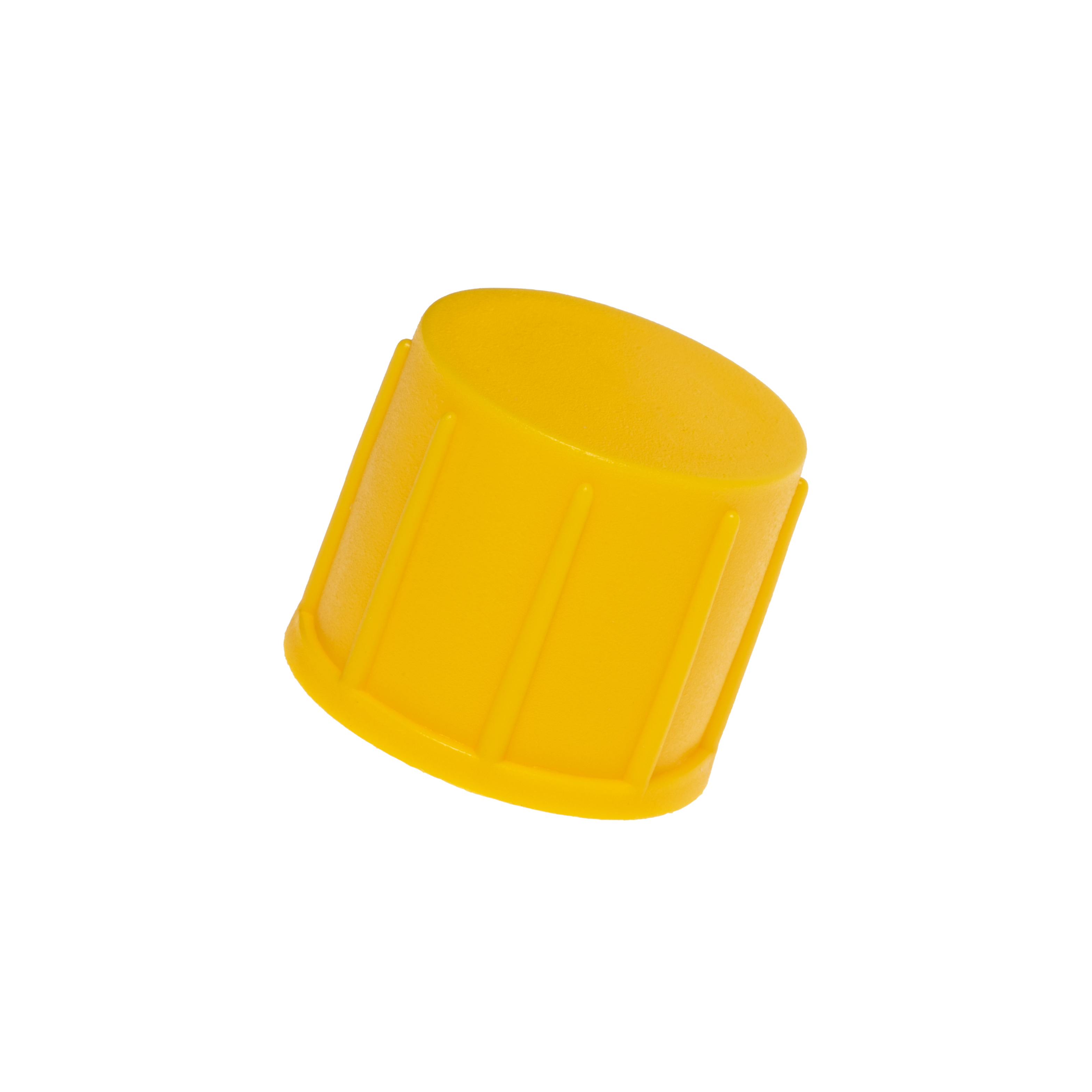

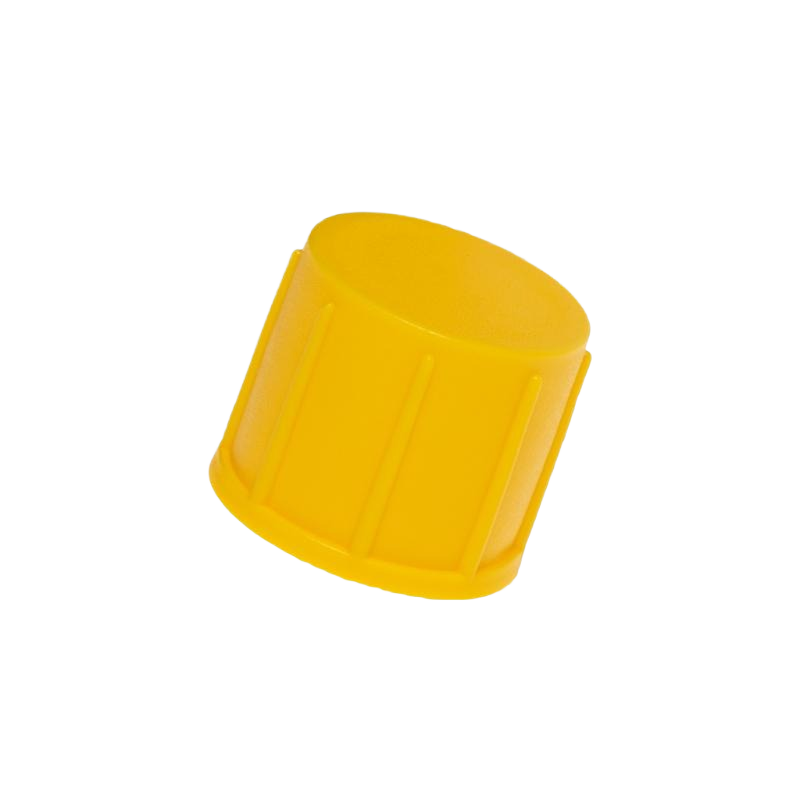

Threaded Gas Caps (AB)
Secure protection for pressurized systems – where sealing performance matters. The AB range is designed to protect external threads in applications tested under pressure, with liquid typically inside. Ideal for powertrain components like cylinder blocks, heads, adapter plates, and lubrication systems.
Ideal for these applications:
All benefits
Application-matched
soft or hard material options
Easy tool access
ribs enable fast install/removal
Pressure-ready
seals under pressure with washer/ O-ring

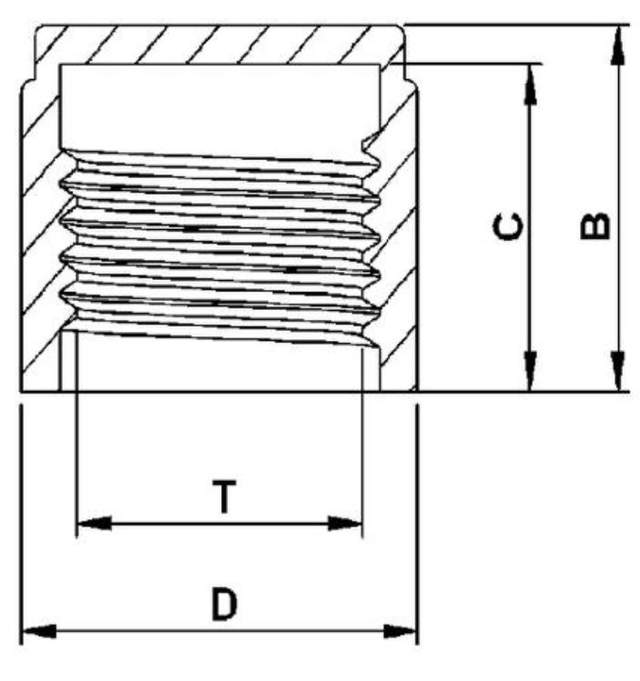

Product specifications
Size unit:
|
|
CO2
|
B
mm
|
C
mm
|
D
mm
|
Fits thread
|
|||
|---|---|---|---|---|---|---|---|---|
| AB1001A-BA20A | Yellow | LLDPE | 0 | 11 | 10.3 | 13 | R 1/8" |
|
| AB1001A-EA20A | Yellow | HDPE | 0 | 11 | 10.3 | 13 | R 1/8" |
|
| AB1301A-BA20A | Yellow | LLDPE | 0 | 14.3 | 13.2 | 16.9 | R 1/4" |
|
| AB1301A-EA20A | Yellow | HDPE | 0 | 14.3 | 13.2 | 16.9 | 0 |
|
| AB1302A-GA10A | Natural | PA66 | 0 | 14.2 | 13 | 17 | R 1/4" |
|
| AB1701A-BA20A | Yellow | LLDPE | 0 | 13.3 | 12 | 21.2 | R 3/8" |
|
| AB1701A-EA20A | Yellow | HDPE | 0 | 13.3 | 12 | 21.2 | 0 |
|
| AB2101A-BA20A | Yellow | LLDPE | 0 | 14.6 | 13.8 | 26.8 | R 1/2" |
|
| AB2101A-EA20A | Yellow | HDPE | 0 | 14.6 | 13.8 | 26.8 | 0 |
|
| AB2102A-GA20A | Yellow | PA66 | 0 | 10 | 7.6 | 26 | R 1/2" |
|
| AB2301A-EA20A | Yellow | HDPE | 0 | 14 | 12.3 | 29.1 | R 5/8" |
|
| AB2601A-BA20A | Yellow | LLDPE | 0 | 15.4 | 13.8 | 32 | R 3/4" |
|
| AB2601A-EA20A | Yellow | HDPE | 0 | 15.4 | 13.6 | 32 | R 3/4" |
|
| AB2602A-GA20A | Yellow | PA66 | 0 | 11 | 9.6 | 35.8 | R 3/4" |
|
| AB3401A-BA20A | Yellow | LLDPE | 0 | 24 | 22.8 | 38.8 | R 1" |
|
| AB3401A-EA20A | Yellow | HDPE | 0 | 24 | 22.8 | 38.8 | R 1" |
|
| AB4201A-BA20A | Yellow | LLDPE | 0 | 24.6 | 23.5 | 48.9 | R 1 1/4" |
|
| AB4201A-EA20A | Yellow | HDPE | 0 | 24.6 | 23.5 | 48.9 | R 1 1/4" |
|
| AB4801A-BA20A | Yellow | LLDPE | 0 | 28.4 | 26.3 | 55.7 | R 1 1/2" |
|
| AB4801A-EA20A | Yellow | HDPE | 0 | 27.9 | 25.9 | 55.4 | R 1 1/2" |
|
| AB6001A-BA20A | Yellow | LLDPE | 0 | 28.5 | 26.8 | 69.5 | R 2" |
|
| AB6001A-EA20A | Yellow | HDPE | 0 | 28.6 | 26.8 | 69.6 | R 2" |
|
| AB6099A-AA20A | Yellow | Recycled LDPE | 0 | 15 | 12 | 70 | R 2" |
|
| AB7601A-EA20A | Yellow | HDPE | 0 | 26 | 24.5 | 82.6 | R 2 1/2" |
|
