Product no.

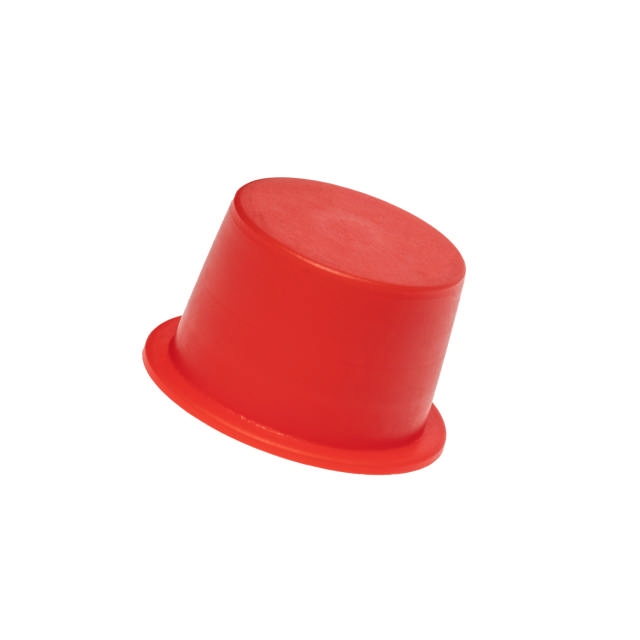

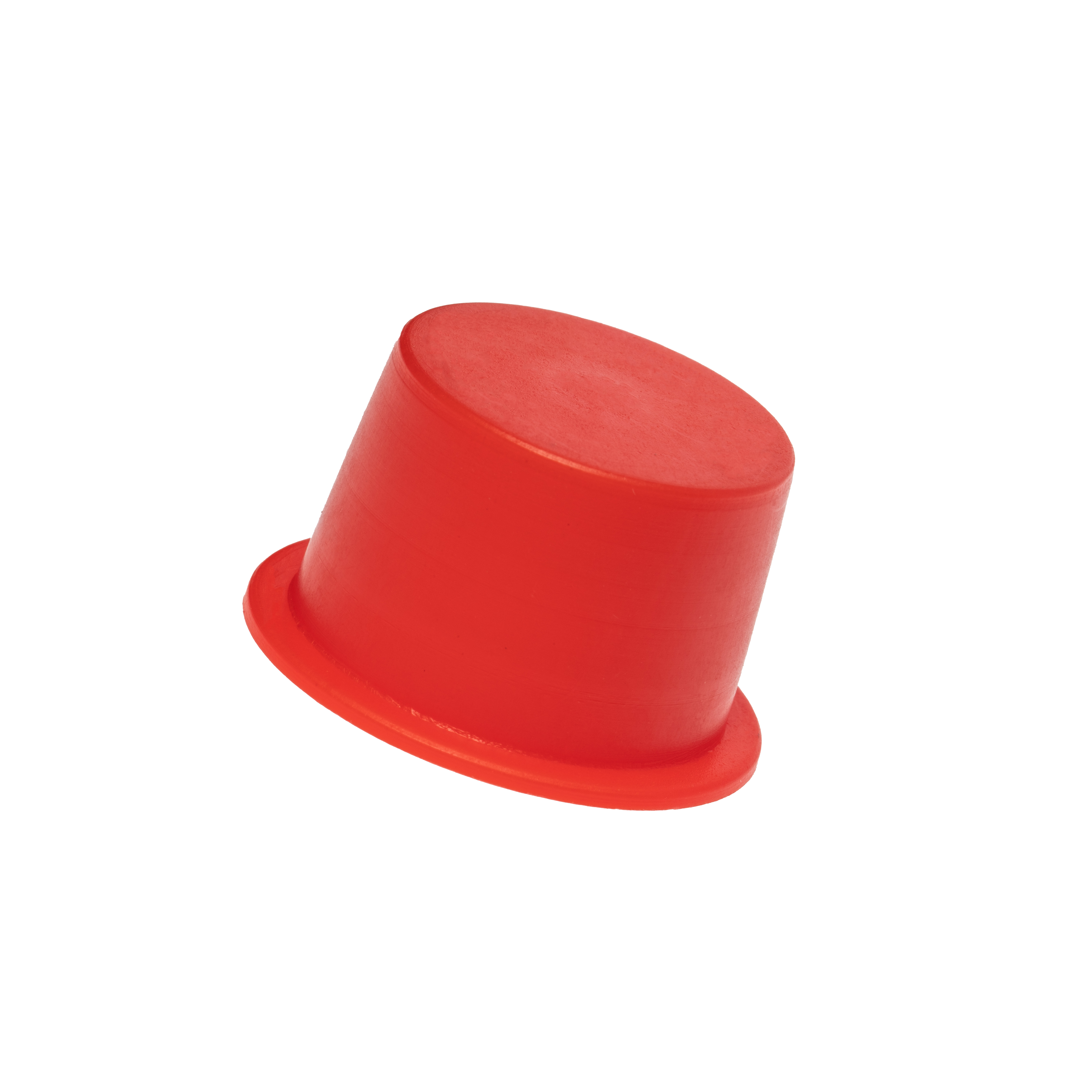

Universal Protectors (NA)

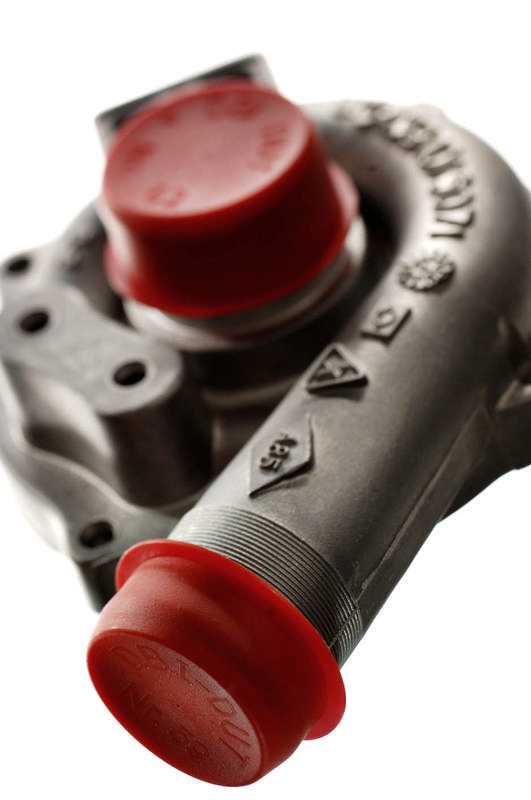

Conical solution for internal and external protection of ports, inspection holes, and fittings in hydraulic systems. Available with vent holes and in soft or high-temperature resistant materials.

Try before you decide
Request sample
Variants
View products
Out of stock
Sign in to buy
All benefits
Internal + external fit
one solution, many uses
Material options
soft or heat-resistant for your needs
Optional venting
supports pressure-sensitive systems
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:

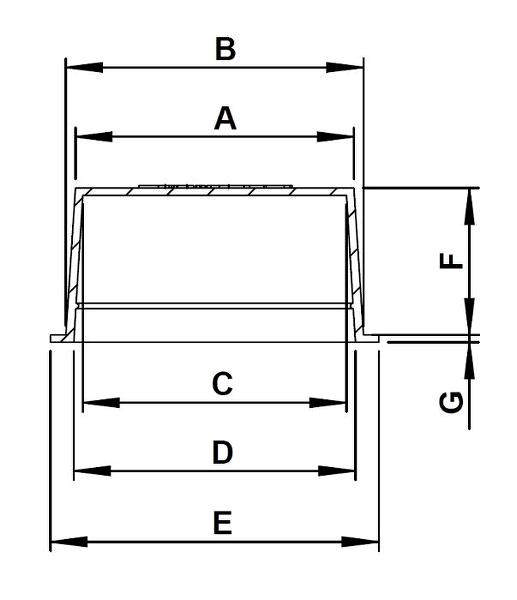

Technical drawing NA range_PDS
CO2
A mm
B mm
C mm
D mm
E mm
F mm
NA0033A-AA00A Red Recycled LDPE 0 2.5 3.3 1.1 2.1 4.9 5
NA0035A-AA00A Red Recycled LDPE 0 2.8 3.5 1.3 2.1 5 4
NA0040A-AA00A Red Recycled LDPE 0 1.3 4 1.1 2.1 5.9 8
NA0046A-AA00A Red Recycled LDPE 0 4.1 4.6 1 2.1 7.4 5.5
NA0047A-AA00A Red Recycled LDPE 0 3.9 4.4 2 2 7.6 3.1
NA0048A-AA00A Red Recycled LDPE 0 3.1 4.9 1.2 2.9 10 8
NA0055A-AA00A Red Recycled LDPE 0 4.8 5.5 3.2 4 8 5.7
NA0059A-AA00A Red Recycled LDPE 0 5 5.9 3.6 4.6 7.4 8
NA0062A-AA00A Red Recycled LDPE 0 5.5 6.2 4 4.8 8.9 5.9
NA0067A-AA00A Red Recycled LDPE 0 6 6.7 4.5 5.3 10.6 5.9
NA0074A-AA00A Red Recycled LDPE 0 6.8 7.4 5 5.6 11.5 6.8
NA0085A-AA00A Red Recycled LDPE 0 7.6 8.5 6 7.1 12 8
NA0095A-AA00A Red Recycled LDPE 0 8.3 9.4 6.9 7.9 13.2 9
NA0098A-AA00A Red Recycled LDPE 0 8.3 9.9 6.8 8 12.8 9
NA0106A-AA00A Red Recycled LDPE 0 9.2 10.6 7.6 9 14.1 10
NA0110A-AA00A Red Recycled LDPE 0 10.1 11 8.2 9.5 15 9.9
NA0123A-AA00A Red Recycled LDPE 0 10.8 12.5 9.2 10.8 16.2 9.6
NA0123A-AE00A Red EVA 0 10.8 12.6 9 10.6 16 9.6
NA0127A-AA00A Red Recycled LDPE 0 11.4 12.8 10.1 11.3 16.9 9.8
NA0138A-AA00A Red Recycled LDPE 0 12 13.8 10.6 12.1 17.9 11.1
NA0138D-AA00A Red Recycled LDPE 0 12 13.8 10.6 12.1 17.9 11.1
NA0145A-AA00A Red Recycled LDPE 0 13.1 14.5 11.5 12.9 19 11.1
NA0150A-AA00A Red Recycled LDPE 0 13.5 14.7 12 13.2 19 11.7
NA0154A-AA00A Red Recycled LDPE 0 13.9 15.4 12.4 14 19.1 12
NA0157A-AA00A Red Recycled LDPE 0 14.2 15.7 13 14.7 18.9 12.8
NA0168A-AA00A Red Recycled LDPE 0 16.7 16.8 15.4 15.5 24 8
NA0169A-AA00A Red Recycled LDPE 0 14.9 16.8 14 15.5 20.3 12.8
NA0169A-AE10A Natural EVA 0 14.9 16.8 14 15.7 20.5 13
NA0169A-GA10A Natural PA66 0 15.5 17.2 13.8 15.8 20.6 13.2
NA0169D-AA00A Red Recycled LDPE 0 14.9 16.8 14 15.5 20.3 12.8
NA0180A-AA00A Red Recycled LDPE 0 16.3 17.95 14.4 16.3 20.1 13.4
NA0190A-AA00A Red Recycled LDPE 0 17.2 18.9 15.8 17.6 23 14
NA0200A-AA00A Red Recycled LDPE 0 18.7 20 17.4 18.7 24 9
NA0200D-AA00A Red Recycled LDPE 0 18.7 20 17.4 18.7 24 9
NA0204A-AA00A Red Recycled LDPE 0 18.2 20.2 16.4 18.8 24.2 13.9
NA0204L-AA00A Red Recycled LDPE 0 18.2 20.2 16.4 18.8 24.2 13.9
NA0210A-AA00A Red Recycled LDPE 0 19.8 21 17.1 18.4 26.9 8.9
NA0211A-AA00A Red Recycled LDPE 0 19.3 21.1 17.6 19.5 25.3 13.7
NA0211L-AA00A Red Recycled LDPE 0 19.3 21.1 17.6 19.5 25.3 13.7
NA0217A-AA00A Red Recycled LDPE 0 20.1 21.8 18.6 20.3 26 17.2
NA0225A-AA00A Red Recycled LDPE 0 20.4 22.5 18.9 20.9 25.9 15
NA0229A-AA00A Red Recycled LDPE 0 20.3 22.9 18.4 21.5 25.7 16.6
NA0232A-AA00A Red Recycled LDPE 0 21.4 23.4 19.7 21.5 27.7 15
NA0255A-AA00A Red Recycled LDPE 0 22.2 25.5 20.2 23.3 28.8 15.5
NA0261A-AA00A Red Recycled LDPE 0 24.2 26 22.4 23.5 29.5 13.7
NA0261D-AA00A Red Recycled LDPE 0 24.2 26 22.4 23.5 29.5 13.7
NA0268A-AA00A Red Recycled LDPE 0 25.2 26.8 23.7 25.4 30.7 13.9
NA0268L-AA00A Red Recycled LDPE 0 25.2 26.8 23.7 25.4 30.7 13.9
NA0279A-AA00A Red Recycled LDPE 0 24.6 28 22.8 26 36.3 16.6
NA0284A-AA00A Red Recycled LDPE 0 27.5 28.6 25.3 26.7 35 13.7
NA0284D-AA00A Red Recycled LDPE 0 27.5 28.6 25.3 26.7 35 13.7
NA0298A-AA00A Red Recycled LDPE 0 26.8 29.8 25.3 28.2 32.4 16.4
NA0306A-AA00A Red Recycled LDPE 0 27.9 30.6 26 28.8 34.8 13.9
NA0314Z-AA10B Natural Recycled LDPE 0 31.4 31.4 30.2 30.2 35.5 8.5
NA0320A-AA00A Red Recycled LDPE 0 29.7 32 27.9 30.3 36.2 17
NA0320L-AA00A Red Recycled LDPE 0 29.7 32 27.9 30.3 36.2 17
NA0327A-AA00A Red Recycled LDPE 0 30.9 33.2 29.6 31.5 35.5 17.8
NA0327L-AA00A Red Recycled LDPE 0 30.9 33.2 29.6 31.5 35.5 17.8
NA0328A-AA00A Red 0 30.7 32.8 29.1 31.1 36.2 16.2
NA0337A-AA00A Red Recycled LDPE 0 31.3 33.7 29.8 32.2 37.3 16.4
NA0337L-AA00A Red Recycled LDPE 0 31.3 33.7 29.8 32.2 37.3 16.4
NA0349A-AA00A Red Recycled LDPE 0 33.1 35.2 31.7 33.4 39.5 16.7
NA0349L-AA00A Red Recycled LDPE 0 33.1 35.2 31.7 33.4 39.5 16.7
NA0369Z-AA20A Yellow Recycled LDPE 0 33.1 36.9 31.5 34.7 40 21
NA0377A-AA00A Red Recycled LDPE 0 34.3 37.5 33 36 41.8 17.5
NA0377L-AA00A Red Recycled LDPE 0 34.3 37.5 33 36 41.8 17.5
NA0381A-AA00A Red Recycled LDPE 0 35.6 38.2 33.7 36.5 41 16.5
NA0381L-AA00A Red Recycled LDPE 0 35.6 38.2 33.7 36.5 41 16.5
NA0395A-AA00A Red Recycled LDPE 0 36.8 39.5 35.3 38 45.7 16.8
NA0395K-AA00A Red Recycled LDPE 0 36.8 39.5 35.3 38 45.7 16.8
NA0400A-AA00A Red Recycled LDPE 0 38 40 36.6 38.4 44.6 17.1
NA0400L-AA00A Red Recycled LDPE 0 38 40 36.6 38.4 44.6 17.1
NA0405A-AA00A Red 0 37.8 40.5 36.8 39.2 46.5 18.3
NA0405L-AA00A Red Recycled LDPE 0 37.8 40.5 36.8 39.2 46.5 18.3
NA0419A-AA00A Red Recycled LDPE 0 39.3 42.2 38 40.8 46.8 19.9
NA0419L-AA00A Red Recycled LDPE 0 39.3 42.2 38 40.8 46.8 19.9
NA0438A-AA00A Red Recycled LDPE 0 41.4 43.7 40 42 48 17.9
NA0438L-AA00A Red Recycled LDPE 0 41.4 43.7 40 42 48 17.9
NA0440A-AA00A Red Recycled LDPE 0 42 44.5 40.1 42.6 47.3 16.8
NA0440D-AA00A Red Recycled LDPE 0 42 44.5 40.1 42.6 47.3 16.8
NA0466A-AA00A Red Recycled LDPE 0 44.2 46.4 42.4 44.6 50 19
NA0466D-AA00A Red Recycled LDPE 0 44.2 46.4 42.4 44.6 50 19
NA0473A-AA00A Red Recycled LDPE 0 44.4 47.3 42.3 44.9 51.3 18.7
NA0473L-AA00A Red Recycled LDPE 0 44.4 47.3 42.3 44.9 51.3 18.7
NA0480A-AA00A Red Recycled LDPE 0 45.6 48 43.5 45.9 52.4 18.9
NA0484A-AA00A Red Recycled LDPE 0 46.2 48.7 44.6 48.8 52.7 18.5
NA0490A-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0490B-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0490L-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9
NA0504A-AA00A Red Recycled LDPE 0 49.4 49.7 46.4 47.5 57.5 8.9
NA0507A-AA00A Red Recycled LDPE 0 49.6 51.8 47.8 50.1 56.5 18.8
NA0507L-AA00A Red Recycled LDPE 0 49.6 51.8 47.8 50.1 56.5 18.8
NA0510A-AA00A Red Recycled LDPE 0 47.9 52.3 46 48.7 59.4 14.5
NA0541A-AA00A Red Recycled LDPE 0 50.35 54.3 48.5 52.4 60.2 17.7
NA0543A-AA00A Red Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0543A-AA90A Blue Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0543D-AA00A Red Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8
NA0558A-AA00A Red Recycled LDPE 0 51.7 55.5 50.1 53.4 58.2 19.6
NA0558L-AA00A Red Recycled LDPE 0 51.7 55.5 50.1 53.4 58.2 19.6
NA0569X-AA00B Red Recycled LDPE 0 52.5 56.9 50.3 54.7 60.7 26
NA0576A-AA00A Red Recycled LDPE 0 55.7 58.3 54.1 56.4 62.3 19.6
NA0576L-AA00A Red Recycled LDPE 0 55.7 58.3 54.1 56.4 62.3 19.6
NA0593A-AA00A Red Recycled LDPE 0 57.5 59.6 55.9 57.6 65.2 19.6
NA0593L-AA00A Red Recycled LDPE 0 57.5 59.6 55.9 57.6 65.2 19.6
NA0607A-AA00A Red Recycled LDPE 0 58.3 60.7 56.9 59 65.1 19.3
NA0607L-AA00A Red Recycled LDPE 0 58.3 60.7 56.9 59 65.1 19.3
NA0633A-AA00A Red Recycled LDPE 0 59.6 63.7 58.1 62 70 18.8
NA0633L-AA00A Red Recycled LDPE 0 59.6 63.7 58.1 62 70 18.8
NA0651A-AA00A Red Recycled LDPE 0 63.3 66 61 63.7 70 20.4
NA0651D-AA00A Red Recycled LDPE 0 63.3 66 61 63.7 70 20.4
NA0665A-AA00A Red Recycled LDPE 0 62.7 66.5 61.1 64.6 69 19.7
NA0665L-AA00A Red Recycled LDPE 0 62.7 66.5 61.1 64.6 69 19.7
NA0684A-AA00A Red Recycled LDPE 0 66.1 68.4 64.2 66.7 72.7 19.8
NA0689A-AA00A Red Recycled LDPE 0 64.8 68.5 63.5 65.6 72.3 28.6
NA0704A-AA00A Red Recycled LDPE 0 67.7 70.4 66.2 69 74.2 20.8
NA0717A-AA00A Red Recycled LDPE 0 67.8 72.4 66.3 70.2 75 22.1
NA0732A-AA00A Red Recycled LDPE 0 70.1 74.3 69.2 71.8 78.1 20.7
NA0732L-AA00A Red Recycled LDPE 0 70.1 74.3 69.2 71.8 78.1 20.7
NA0742A-AA00A Red Recycled LDPE 0 68.6 74.2 67 70.6 78.3 29.1
NA0760A-AA00A Red Recycled LDPE 0 73.8 76 71.8 74.4 80.9 20.9
NA0760D-AA00A Red Recycled LDPE 0 73.8 76 71.8 74.4 80.9 20.9
NA0771A-AA00A Red Recycled LDPE 0 74.8 77.7 72.1 75.6 82.6 21.5
NA0771D-AA00A Red Recycled LDPE 0 74.8 77.7 72.1 75.6 82.6 21.5
NA0808A-AA00A Red Recycled LDPE 0 77.9 80.3 76.1 78.1 84.8 20.4
NA0808L-AA00D Red Recycled LDPE 0 77.9 80.3 76 78.1 0 20.4
NA0820A-AA00A Red Recycled LDPE 0 78.8 82 77.5 80.2 86 21.9
NA0820L-AA00A Red Recycled LDPE 0 78.8 82 77.5 80.2 86 21.9
NA0832A-AA00A Red Recycled LDPE 0 80.9 83.2 78.4 81.2 88.1 21.8
NA0838A-AA00A Red Recycled LDPE 0 77.9 83.8 76.5 81.8 87.8 30.4
NA0838D-AA20A Yellow Recycled LDPE 0 77.9 83.8 76.5 81.8 87.8 30.4
NA0845A-AA00A Red Recycled LDPE 0 79.6 84.5 78 72.8 87.8 25.7
NA0870A-AA00A Red Recycled LDPE 0 83.4 86.3 81 83.7 91 21.4
NA0870A-AA90A Blue Recycled LDPE 0 83.4 86.3 81 83.7 91 21.4
NA0873A-AA00A Red Recycled LDPE 0 84.1 87.3 83.3 85.6 92 21.6
NA0873L-AA00A Red Recycled LDPE 0 84.1 87.3 83.3 85.6 92 21.6
NA0895A-AA00A Red Recycled LDPE 0 87.7 90.5 85.8 88.6 95 21.8
NA0895L-AA00A Red Recycled LDPE 0 87.7 90.5 85.8 88.6 95 21.8
NA0896A-AA00A Red Recycled LDPE 0 88 90.9 86.6 89 95 21.8
NA0896L-AA00D Red Recycled LDPE 0 88 90.9 86.6 89 95 21.8
NA0932A-AA00A Red Recycled LDPE 0 90.1 92.3 86.6 87.8 100 23.4
NA0943A-AA00A Red Recycled LDPE 0 91.2 95.7 89.4 94.2 102 23.4
NA0943D-AA00A Red Recycled LDPE 0 91.2 95.7 89.4 94.2 102 23.4
NA0973A-AA00A Red Recycled LDPE 0 94.2 97.3 92 96 100.5 23.8
NA0973L-AA00D Red Recycled LDPE 0 94.2 97.3 92 96 100.5 23.8
NA0984A-AA00A Red Recycled LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5
NA0984A-AB10A Natural BIO LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5
NA0984D-AA00D Red Recycled LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5
NA1012A-AA00B Red Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1012B-AA20B Yellow Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1012C-AA20B Yellow Recycled LDPE 0 98.9 101.4 97 99.5 115 0
NA1012L-AA00D Red Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9
NA1024A-AA00B Red Recycled LDPE 0 101.96 102.5 95 100.6 108.8 25.15
NA1024L-AA00B Red Recycled LDPE 0 101.96 102.5 95 100.6 108.8 25.15
NA1071A-AA00B Red Recycled LDPE 0 103.5 107.1 101.6 105.2 111.1 22.8
NA1071L-AA00D Red Recycled LDPE 0 103.5 107.1 101.6 105.2 111.1 22.8
NA1071S-AA00B Red Recycled LDPE 0 102.3 105 99.6 100.9 109.1 22.8
NA1107A-AA00B Red Recycled LDPE 0 103.9 110.7 102.1 108.4 113.7 31.5
NA1107L-AA00D Red Recycled LDPE 0 103.9 110.7 102.1 108.4 113.7 31.5
NA1122A-AA00B Red Recycled LDPE 0 110.5 113.8 108 111 119.5 27.5
NA1123A-BA00B Red LLDPE 0 109.4 112.3 107.2 110.6 117.2 24
NA1123L-BA00D Red LLDPE 0 109.4 112.3 107.2 110.6 117.2 24
NA1145A-AA00B Red Recycled LDPE 0 110.9 114.5 106.4 110 120.6 26
NA1146A-AA00B Red Recycled LDPE 0 112.9 115.5 110 113.5 119.5 24.3
NA1146D-AA00D Red Recycled LDPE 0 112.9 115.5 110 113.5 119.5 24.3
NA1186A-AA00B Red Recycled LDPE 0 115.3 118.6 113.6 116.5 123 23.8
NA1212A-AA00B Red Recycled LDPE 0 117.5 121.2 115.9 119.4 125.9 24.3
NA1212D-AA00B Red Recycled LDPE 0 117.5 121.2 115.9 119.4 125.9 24.3
NA1244X-AA00B Red Recycled LDPE 0 118.2 124.4 116 122.2 129.3 36.8
NA1244Z-AA00B Red Recycled LDPE 0 118.2 124.4 116 122.2 129.3 36.8
NA1261A-AA00B Red Recycled LDPE 0 123.5 126.1 121.5 124.5 137 24.9
NA1261L-AA00D Red Recycled LDPE 0 123.5 126.1 121.5 124.5 137 24.9
NA1277A-AA00B Red Recycled LDPE 0 126.2 127.7 123.5 126.5 130 25.9
NA1277D-AA00D Red Recycled LDPE 0 126.2 127.7 123.5 126.5 130 25.9
NA1310A-AA00B Red Recycled LDPE 0 128.6 131.6 126.5 129.5 139.5 25.6
NA1325A-AA00B Red Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1325A-AA90B Blue Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1325L-AA00D Red Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5
NA1342A-AA00B Red Recycled LDPE 0 129.9 135 126.9 132.9 138 32.5
NA1342L-AA00B Red Recycled LDPE 0 129.9 135 126.9 132.9 138 32.5
NA1360A-AA00B Red Recycled LDPE 0 133.8 136 131.1 134.1 143.9 26.9
NA1360D-AA00D Red Recycled LDPE 0 133.8 136 131.1 134.1 143.9 26.9
NA1402A-AA00B Red Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1402A-AA10B Natural Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1402L-AA00D Red Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2
NA1440A-AA00B Red Recycled LDPE 0 135.4 145.4 133.4 143.1 156.1 35.2
NA1487A-AA00B Red Recycled LDPE 0 142.8 148.7 141.4 146.9 152.5 28.5
NA1487L-AA00D Red Recycled LDPE 0 142.8 148.7 141.4 146.9 152.5 28.5
NA1510A-AA00B Red Recycled LDPE 0 148.7 152.2 144.9 149.8 166.3 27.3
NA1510D-AA00D Red Recycled LDPE 0 148.7 152.2 144.9 149.8 166.3 27.3
NA1579A-AA00B Red Recycled LDPE 0 151.6 157.9 149.7 155.7 167 29.1
NA1579L-AA00D Red Recycled LDPE 0 151.6 157.9 149.7 155.7 167 29.1
NA1605A-AA00B Red Recycled LDPE 0 158.5 160.5 156.1 158.7 168.9 27.3
NA1605L-AA00D Red Recycled LDPE 0 158.5 160.5 156.1 158.7 168.9 27.3
NA1643A-AA00B Red Recycled LDPE 0 160.8 164.3 157 161 170.6 38
NA1643L-AA00D Red Recycled LDPE 0 160.8 164.3 157 161 170.6 38
NA1653A-AA00B Red Recycled LDPE 0 158 165.7 154.5 162.4 167.9 40.2
NA1653L-AA00D Red Recycled LDPE 0 158 165.7 154.5 162.4 167.9 40.2
NA1682A-AA00B Red Recycled LDPE 0 165.5 168.2 1600.3 163.7 175 27.3
NA1711A-AA00B Red Recycled LDPE 0 167.5 171.1 165.1 169.5 180 28
NA1759A-AA00B Red Recycled LDPE 0 172.6 178.3 169.9 175.2 185.5 27.6
NA1759L-AA00D Red Recycled LDPE 0 172.6 178.3 169.9 175.2 185.5 27.6
NA1813A-AA00B Red Recycled LDPE 0 178.3 181.3 176.1 179.4 189 27.8
NA1857A-AA00B Red Recycled LDPE 0 178.8 185.7 176.3 183.7 193.8 35.1
NA1857L-AA00D Red Recycled LDPE 0 178.8 185.7 176.3 183.7 193.8 35.1
NA1934A-AA00B Red Recycled LDPE 0 187.4 193.4 185.5 191.5 201 29.6
NA1934L-AA00D Red Recycled LDPE 0 187.4 193.4 185.5 191.5 201 29.6
NA1946A-AA00B Red Recycled LDPE 0 189.7 194.6 187.6 192.7 203 29.1
NA1946L-AA00D Red Recycled LDPE 0 189.7 194.6 187.6 192.7 203 29.1
NA2008A-AA00B Red Recycled LDPE 0 196.7 200.8 194.2 198.1 215.9 31.6
NA2008L-AA00D Red Recycled LDPE 0 196.7 200.8 194.2 198.1 215.9 31.6
NA2020A-AA00D Red Recycled LDPE 0 191.5 202 189.82 200 219 0
NA2020L-AA00D Red Recycled LDPE 0 193 201.5 189.82 198.56 219 31.5
NA2032A-AA00B Red Recycled LDPE 0 199 203.2 196 200 213.5 44.8
NA2039A-AA00B Red Recycled LDPE 0 199.5 203.9 196.9 200.9 218 33.2
NA2039L-AA00D Red Recycled LDPE 0 199.5 203.9 196.9 200.9 218 33.2
NA2086A-AA00B Red Recycled LDPE 0 203.9 208.6 201 205 222.4 32.9
NA2137A-AA00B Red Recycled LDPE 0 206.4 213.7 202.8 209.5 216.8 45
NA2137D-AA00D Red Recycled LDPE 0 206.4 213.7 202.8 209.5 216.8 45
NA2210A-AA00B Red Recycled LDPE 0 213 221 209.8 217.8 231 40
NA2210L-AA00D Red Recycled LDPE 0 213 221 209.8 217.8 231 40
NA2270A-BA00B Red Recycled LDPE 0 218 227 214.8 224.5 236.9 45.5
NA2270L-BA00D Red LLDPE 0 218 227 214.8 224.5 236.9 45.5
NA2332L-AA00D Red Recycled LDPE 0 220 234 219.58 232 252 32.5
NA2480A-AA00B Red Recycled LDPE 0 241.2 248 238.2 245.5 259.5 45
NA2480L-AA00D Red Recycled LDPE 0 241.2 248 238.2 245.5 259.5 45
NA2518A-BA00S Red LLDPE 0 248.5 251.8 245.5 250.3 259 45.7
NA2571A-BA00B Red LLDPE 0 250.5 257.1 248 253.5 264.4 40.5
NA2571L-BA00D Red LLDPE 0 250.5 257.1 248 253.5 264.4 40.5
NA2630L-AA00D Red Recycled LDPE 0 248 263 247.44 260.3 280 41.5
NA2673A-BA00B Red LLDPE 0 261 267.3 254.9 263.7 273.3 51.3
NA2770A-BA00B Red LLDPE 0 270 277 267.5 273.9 287 50
NA2770L-BA00D Red LLDPE 0 270 277 267.5 273.9 287 50
NA2816L-BA00D Red LLDPE 0 272 282 270 279.4 300 48.5
NA2901A-BA00B Red LLDPE 0 282.4 290.1 278.4 285.6 297.7 40.3
NA2901L-BA00D Red LLDPE 0 282.4 290.1 278.4 285.6 297.7 40.3
NA3140A-BA00B Red LLDPE 0 303.4 314 300.1 310.8 332.7 55
NA3140L-BA00D Red LLDPE 0 303.4 314 300.1 310.8 332.7 55
NA3177A-BA00S Red LLDPE 0 314.8 317.7 310 316 335 60.4

Learn how our full service can add value to your business

Your full-service protection solution partner

Lorem ipsum dolor sit amet con­te­tur

Let’s talk about your business
Matching applications to mobility
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
View all applications
Value added services
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
View all services
