Product no.

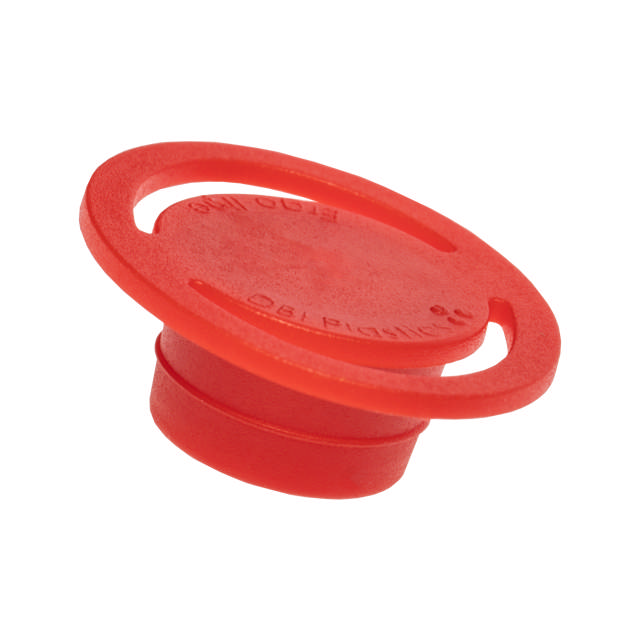

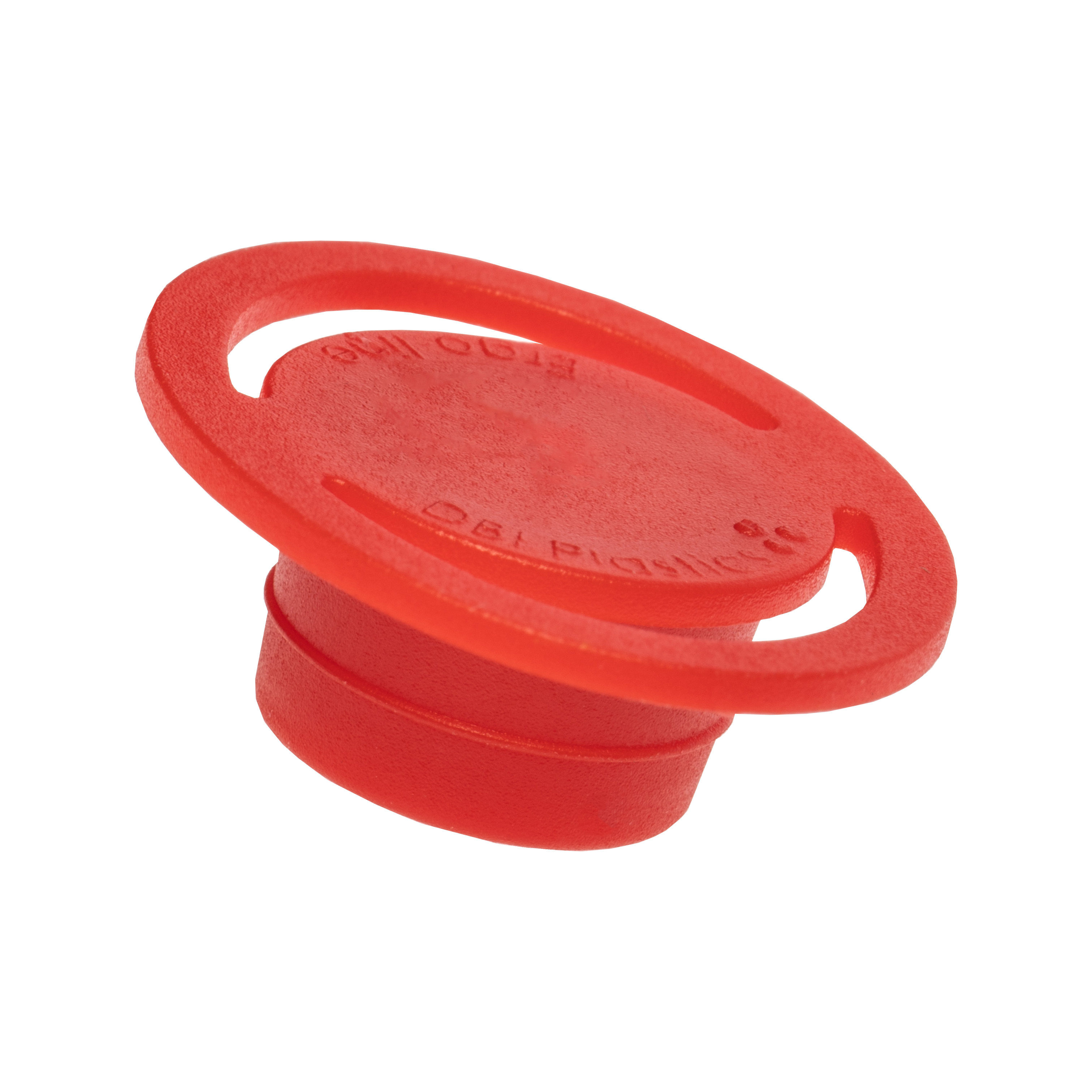

Ergoline Plugs (DD)

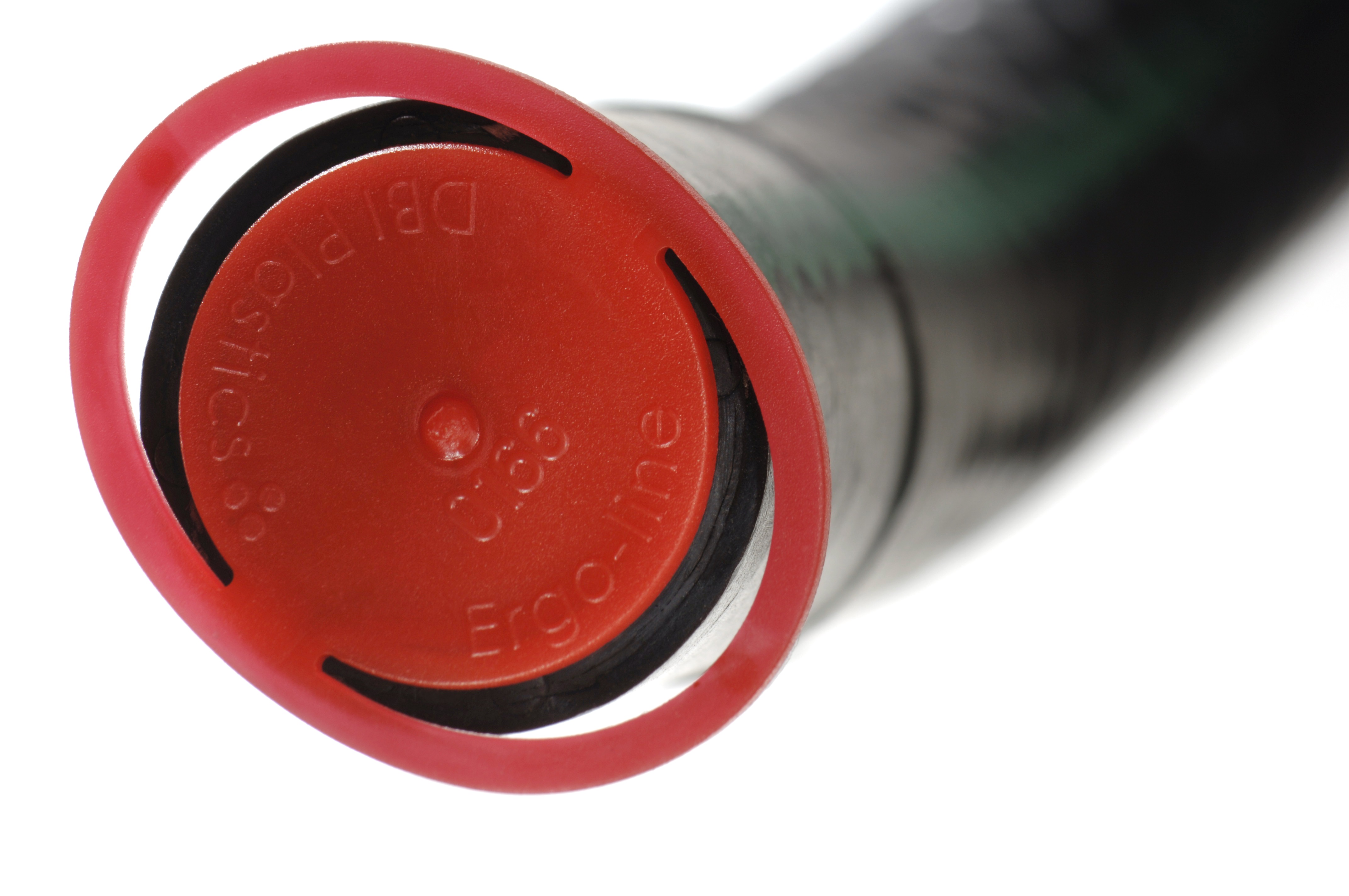

Easy-grip plugs for quick, tool-free removal. The oval pull ring provides a secure hold close to the plug, preventing accidental dislodging when tubes are bundled. Designed for smooth removal, these plugs protect rubber hoses, A/C systems, heat exchangers, and more.
Ideal for these applications:
All benefits
Compact design
won’t dislodge in tight bundles
Firm grip
oval pull ring for smooth two-finger handling
Ideal for frequent removal
no tools needed

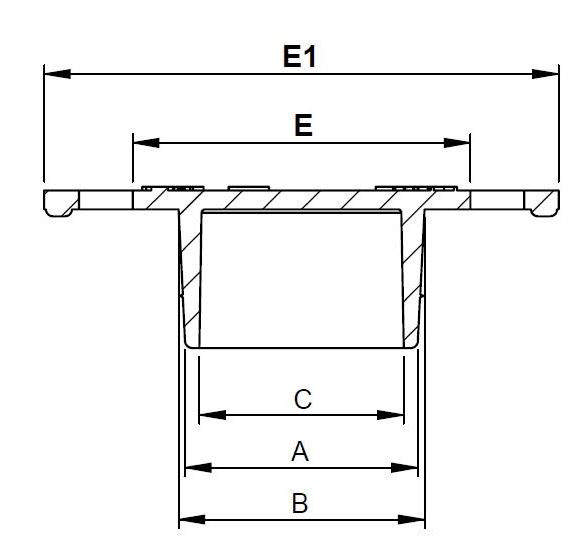

Product specifications
Size unit:
|
|
CO2
|
A
mm
|
B
mm
|
C
mm
|
E
mm
|
E1
mm
|
F
mm
|
|||
|---|---|---|---|---|---|---|---|---|---|---|
| DD0110A-AA00A | Red | Recycled LDPE | 0 | 9.8 | 10.8 | 7.9 | 14.6 | 23.9 | 7.1 |
|
| DD0123A-AA00A | Red | Recycled LDPE | 0 | 11.1 | 12.3 | 9.1 | 14.6 | 23.8 | 7.1 |
|
| DD0145A-AA00A | Red | Recycled LDPE | 0 | 13.4 | 14.2 | 11.8 | 19.5 | 29.7 | 8 |
|
| DD0161A-AA00A | Red | Recycled LDPE | 0 | 14.6 | 16 | 13 | 19.4 | 29.7 | 7.7 |
|
| DD0166A-AA00A | Red | Recycled LDPE | 0 | 15.8 | 16.6 | 14.2 | 19.6 | 29.5 | 7.7 |
|
