Product no.

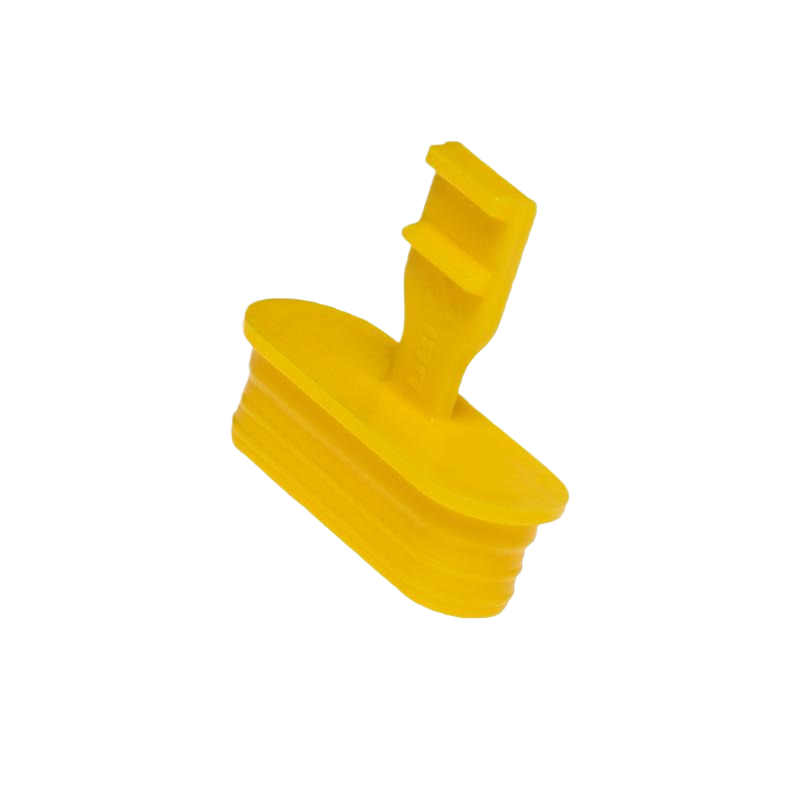

LV Solution for TE Connectors (EL)

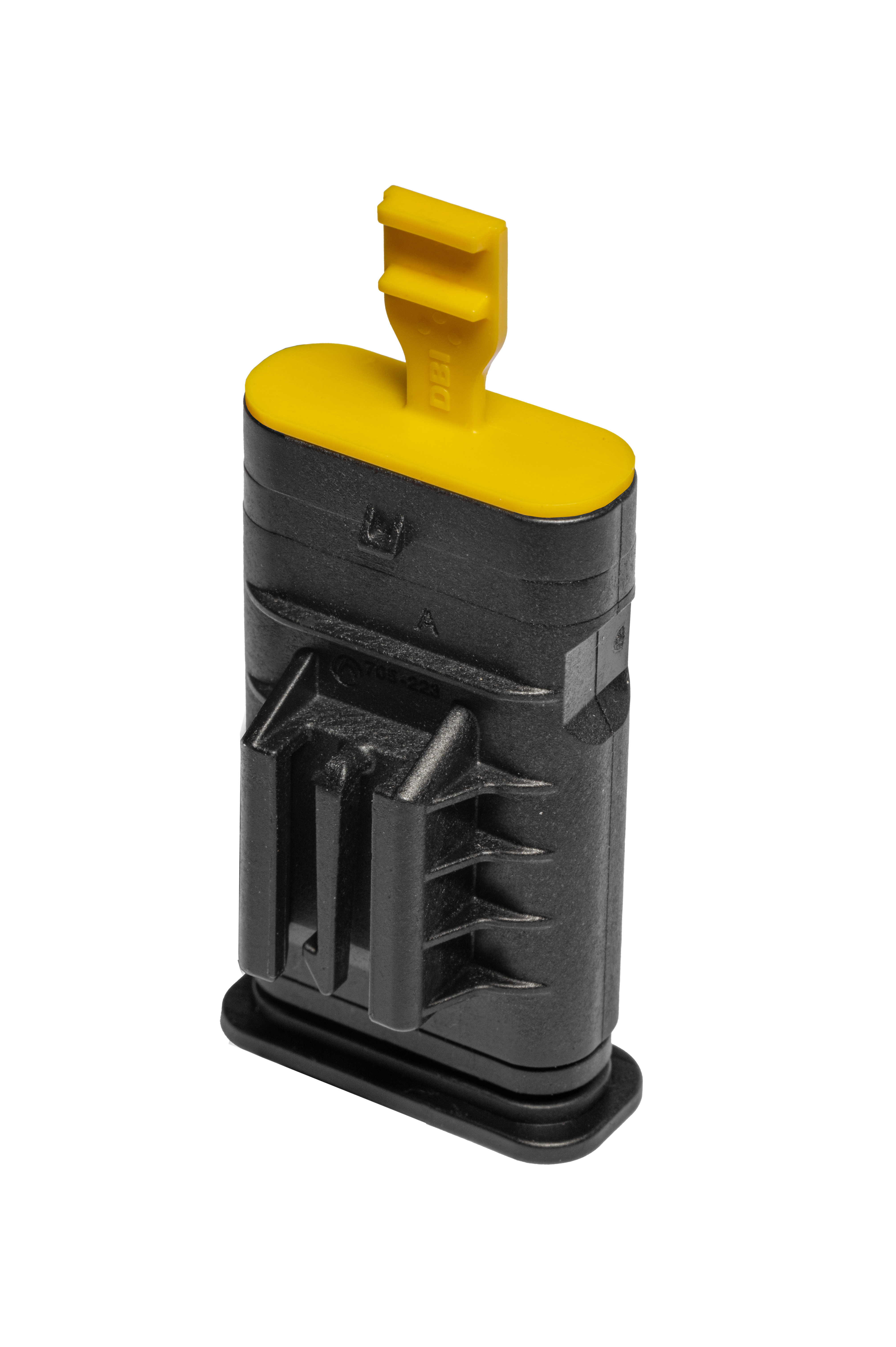

EL range protects LV connector sockets and pins in inverters, DC/DC converters, battery packs, and HVAC systems. This range is compatible with TE Connectivity: MCON 1.2 mm, AMP 2.8 and JPT 2.8 series.
Ergonomic handle ensures easy removal and reliable protection against dust, liquids, and vibration.
All benefits
Easy handling
ergonomic tab for quick removal
Reliable fit
compatible with key LV connector systems
Strong seal
protects against dust, liquids, and vibration
Product specifications

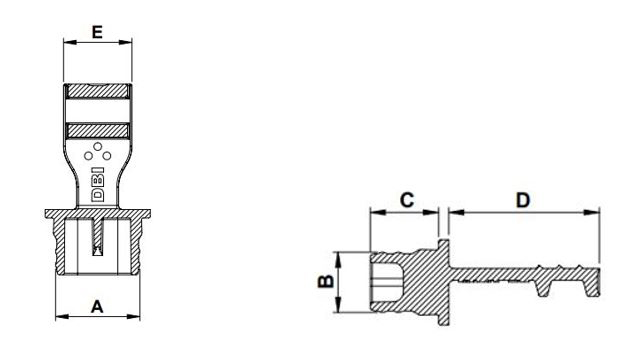

Size unit:
|
|
CO2
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
Number Of Poles
|
Number Of Rows
|
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EL0101A-AA20A | Yellow | Recycled LDPE | 0 | 10.12 | 6.08 | 6.8 | 15 | 8.16 | 2 | 1 |
|
| EL0140A-AA20A | Yellow | Recycled LDPE | 0 | 14.02 | 6 | 6.8 | 15 | 8.16 | 3 | 1 |
|
| EL0156A-AA20A | Yellow | Recycled LDPE | 0 | 15.52 | 10.39 | 7.8 | 15 | 8.16 | 2 | 1 |
|
| EL0193A-AA20A | Yellow | Recycled LDPE | 0 | 19.33 | 7.36 | 6.8 | 15 | 8.16 | 4 | 1 |
|
| EL0222A-AA20A | Yellow | Recycled LDPE | 0 | 22.34 | 16.7 | 6.8 | 15 | 8.16 | 6 | 2 |
|
| EL0234A-AA20A | Yellow | Recycled LDPE | 0 | 23.41 | 7.43 | 6.8 | 15 | 8.16 | 5 | 1 |
|
| EL0265A-AA20A | Yellow | Recycled LDPE | 0 | 15.7 | 26.44 | 0 | 0 | 0 | 9 | 2 |
|
| EL0356A-AA20A | Yellow | Recycled LDPE | 0 | 35.61 | 7.7 | 6.8 | 15 | 8.16 | 8 | 1 |
|
| EL0357A-AA20B | Yellow | Recycled LDPE | 0 | 35.52 | 12.51 | 6.8 | 15 | 8.16 | 6 | 1 |
|
