Product no. X0047

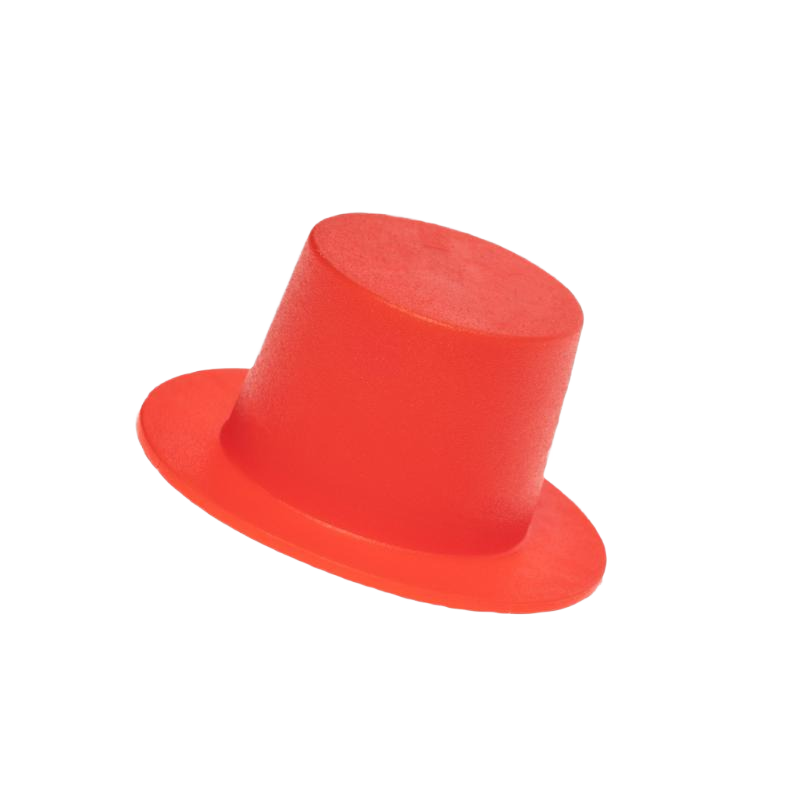

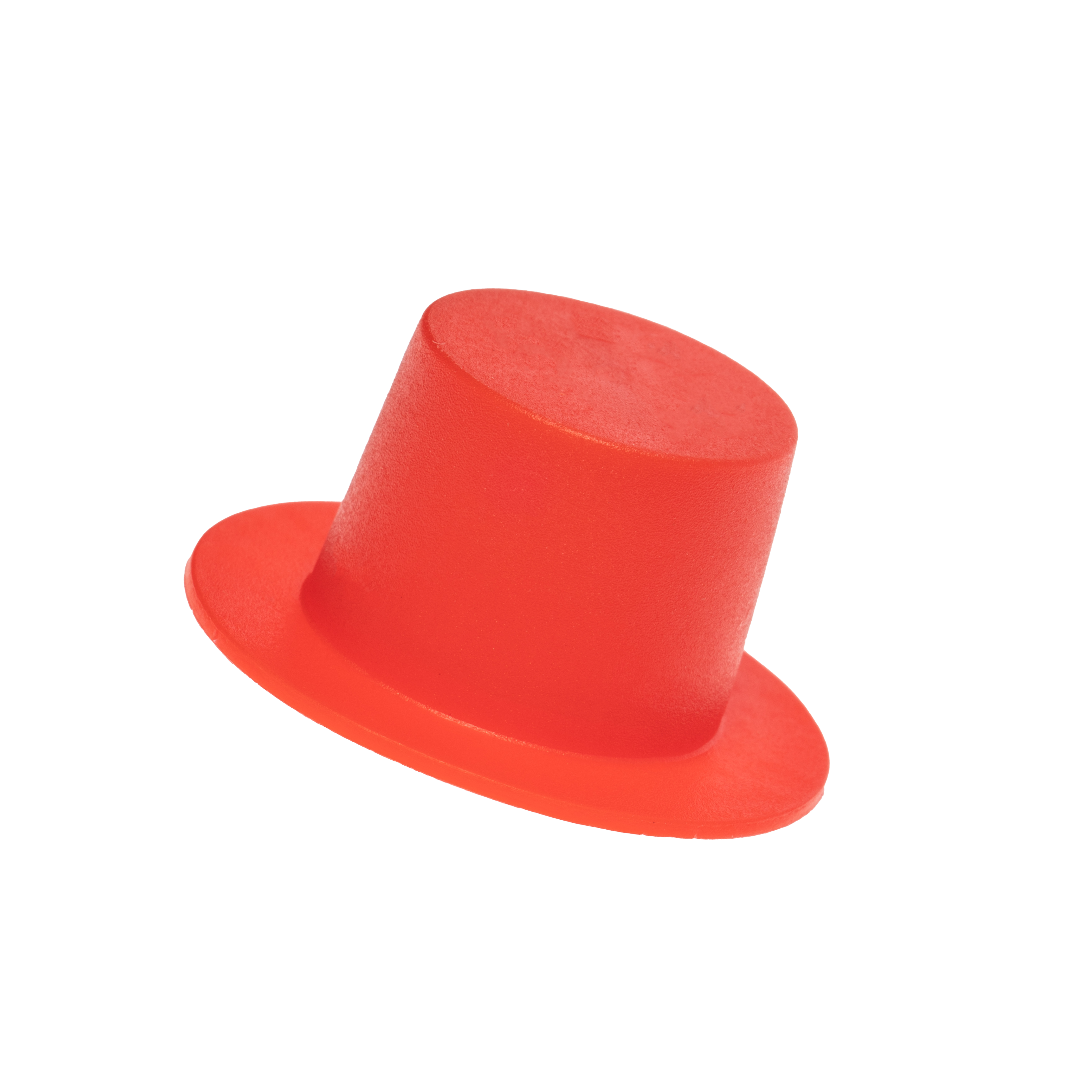

Protectors with Flange (NE)

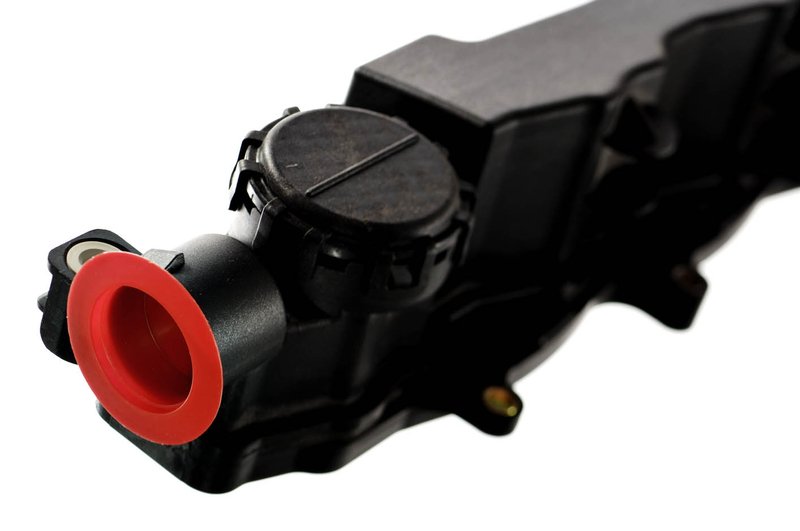

Flanged protectors for threaded and inspection holes. Ideal for automotive use where surface protection and easy removal are needed. Options include vent holes and heat-resistant materials.
Ideal for these applications:
All benefits
Large flange
protects surrounding area and aids removal
Optional features
vent hole and heat-resistant materials
Secure fit
tapered design holds firmly in place
|
|
CO2
|

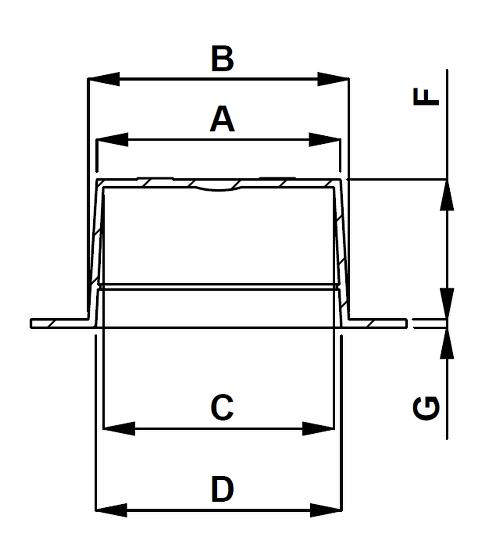

A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
F
mm
|
|---|
| NE0067A-AA00A | Red | Recycled LDPE | 0 | 5.4 | 6.7 | 4.2 | 5 | 21.9 | 14.8 |
|
| NE0078A-AA00A | Red | Recycled LDPE | 0 | 6.8 | 7.9 | 5.3 | 6.3 | 17 | 9 |
|
| NE0095A-AA00A | Red | Recycled LDPE | 0 | 8.1 | 9.5 | 6.6 | 7.8 | 18 | 9 |
|
| NE0128A-AA00A | Red | Recycled LDPE | 0 | 11.4 | 12.5 | 10.2 | 11.1 | 21.8 | 9.9 |
|
| NE0138A-AA00A | Red | Recycled LDPE | 0 | 12.2 | 13.8 | 10.7 | 12.3 | 24 | 11 |
|
| NE0161A-AA00A | Red | Recycled LDPE | 0 | 14.3 | 16.1 | 12.7 | 14.5 | 25.7 | 11.8 |
|
| NE0190A-AA00A | Red | Recycled LDPE | 0 | 17 | 18.7 | 15.8 | 17.3 | 29 | 13.8 |
|
| NE0202A-AA00A | Red | Recycled LDPE | 0 | 17.8 | 20.2 | 16.3 | 18.8 | 30 | 14 |
|
| NE0202B-AA00A | Red | Recycled LDPE | 0 | 17.8 | 20.2 | 16.3 | 18.8 | 30 | 14 |
|
| NE0224A-AA00A | Red | Recycled LDPE | 0 | 20.2 | 22.4 | 18.9 | 20.9 | 33 | 15 |
|
| NE0229A-AA00A | Red | Recycled LDPE | 0 | 20.3 | 22.9 | 18.4 | 21.5 | 40 | 15 |
|
| NE0257A-AA00A | Red | Recycled LDPE | 0 | 24 | 25.7 | 22.7 | 24.2 | 37 | 13.8 |
|
| NE0272A-AA00A | Red | Recycled LDPE | 0 | 24.9 | 27.2 | 23.7 | 25.7 | 40 | 13.8 |
|
| NE0306A-AA00A | Red | Recycled LDPE | 0 | 27.9 | 30.6 | 25.6 | 28.9 | 42.2 | 13.9 |
|
| NE0314A-AA00A | Red | Recycled LDPE | 0 | 29.6 | 31.4 | 28.2 | 30 | 44 | 15.8 |
|
| NE0334A-AA00A | Red | Recycled LDPE | 0 | 31 | 33.4 | 29.5 | 31.9 | 48 | 17.3 |
|
| NE0395A-AA00A | Red | Recycled LDPE | 0 | 37 | 39.9 | 35.4 | 38.6 | 54 | 16.5 |
|
| NE0410A-AA00A | Red | Recycled LDPE | 0 | 38.5 | 41 | 36.2 | 39.7 | 60 | 18.3 |
|
| NE0419L-AA00A | Red | Recycled LDPE | 0 | 39.3 | 42.2 | 38.2 | 40.8 | 56 | 19.7 |
|
| NE0447A-AA00A | Red | Recycled LDPE | 0 | 41.7 | 44.7 | 39.2 | 42.8 | 67.9 | 16.3 |
|
| NE0451L-AA20A | Yellow | Recycled LDPE | 0 | 41.5 | 45.1 | 39.6 | 43.2 | 70 | 19.6 |
|
| NE0480A-AA20A | Yellow | Recycled LDPE | 0 | 45.6 | 48 | 43.5 | 45.9 | 62.4 | 18.7 |
|
| NE0480B-AA00B | Red | 0 | 47.9 | 0 | 0 | 0 | 0 | 0 |
|
|
| NE0516A-AA00A | Red | Recycled LDPE | 0 | 49.3 | 51.6 | 47.3 | 50.2 | 64 | 18.7 |
|
| NE0543A-AA00A | Red | Recycled LDPE | 0 | 51.3 | 54.3 | 49.9 | 52.8 | 74.5 | 19.6 |
|
| NE0543B-AA20B | Yellow | 0 | 51 | 53.84 | 49.72 | 52.66 | 0 | 0 |
|
|
| NE0567A-AA00A | Red | Recycled LDPE | 0 | 52.5 | 56.2 | 50.1 | 54.4 | 75.4 | 19.3 |
|
| NE0567B-AA00A | Red | Recycled LDPE | 0 | 52.5 | 56.2 | 50.1 | 54.4 | 75.4 | 19.3 |
|
| NE0567L-AA00B | Red | Recycled LDPE | 0 | 52.5 | 56.2 | 50.1 | 54.4 | 75.4 | 19.3 |
|
| NE0579A-AA00A | Red | 0 | 55.8 | 57.9 | 54.1 | 56 | 73 | 18.7 |
|
|
| NE0636A-AA00A | Red | Recycled LDPE | 0 | 60 | 63.6 | 58.4 | 61.7 | 83.3 | 19.2 |
|
| NE0730A-AA00A | Red | Recycled LDPE | 0 | 66.8 | 72.8 | 64.9 | 70.9 | 100 | 20.6 |
|
