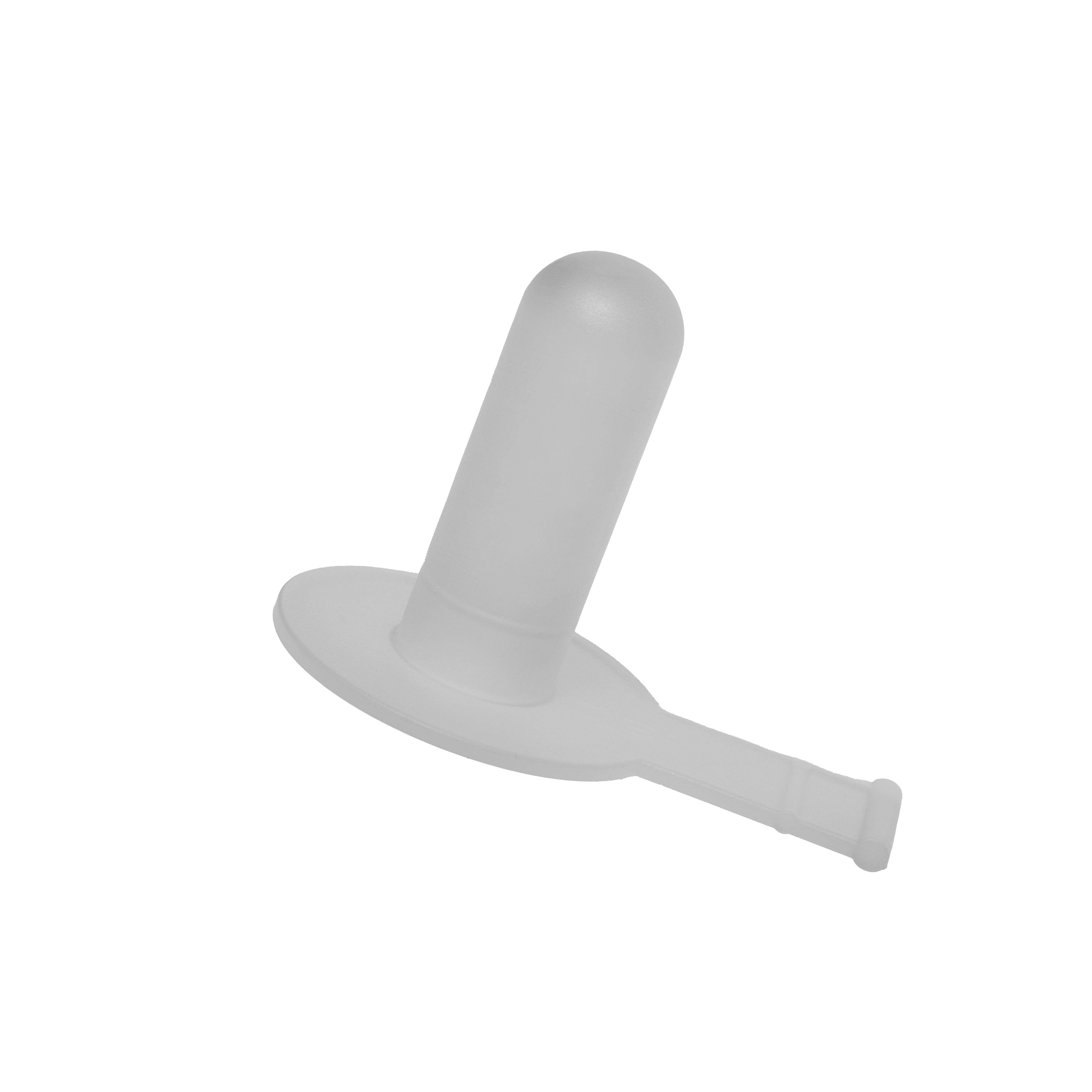

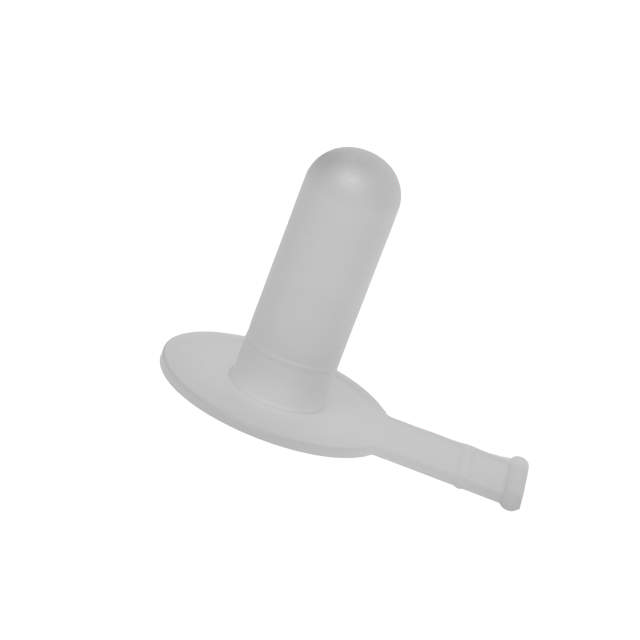

Quick Connector Plugs (DS)

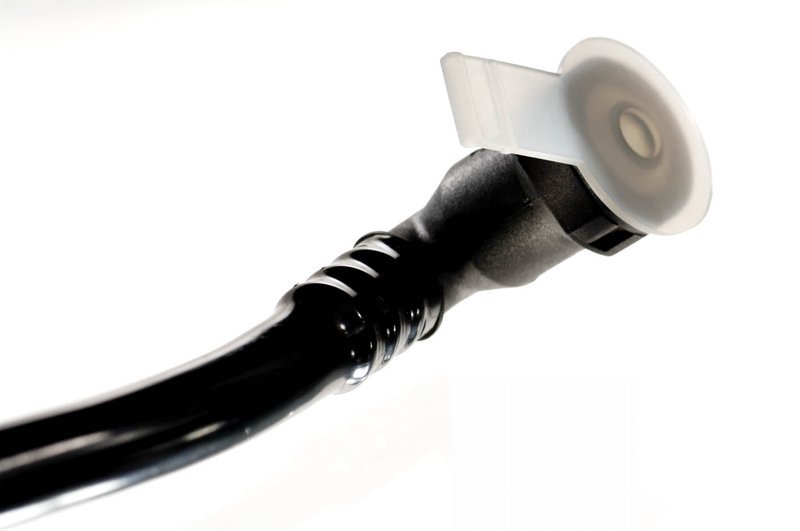

Secure sealing for female quick connectors in fuel lines. The extended length ensures a tight seal during transport and pressure tests. A large flange protects surfaces and allows easy removal. Features a horizontal handle for better grip and packaging flexibility. Some plugs meet SAE J2044 standards for nominal pipe sizes.

Ideal for these applications:

Fuel Delivery & Management Systems

Try before you decide

Request sample

Variants

View products

Out of stock

All benefits

Flange + handle

for easy removal and ergonomic use

Internal sealing

resists pressure during testing

SAE-compliant

fits standard pipe diameters

Product specifications Applications Value added services

Jump to top

Product specifications

Size unit:

inches

DS range_PDS

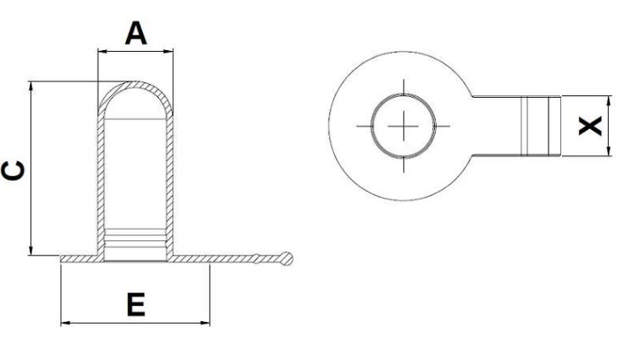

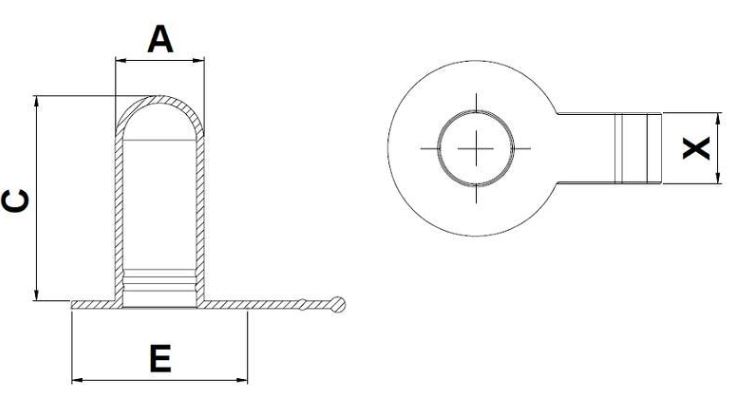

			A mm	C mm	E mm	Suitable For Standards
DS0064A-AA10A	Natural	Recycled LDPE	6.35	25.3	17.5	SAE 6.35 \| 1/4"
DS0078A-AA10A	Natural	Recycled LDPE	7.8	25.2	23	SAE 8.0 \| 5/16"
DS0080A-AA10A	Natural	Recycled LDPE	8	25	23	SAE 8.0
DS0095A-AA10A	Natural	Recycled LDPE	9.5	25.8	24.8	SAE 9.5 \| 3/8"
DS0100A-AA10A	Natural	Recycled LDPE	10	27	24.8	SAE 10.0
DS0118A-AA10A	Natural	Recycled LDPE	11.8	38.9	25	SAE 12.0
DS0126A-AA10A	Natural	Recycled LDPE	12.6	39.2	25	SAE 12.7 \| 1/2"
DS0150A-AV10A	Natural	LDPE	15	34.1	34	0
DS0159A-AA10A	Natural	Recycled LDPE	15.6	34.1	33.8	SAE 16.0 \| 5/8"
DS0160A-AA10A	Natural	Recycled LDPE	16	36.1	34.9	SAE 16.0
DS0180A-AA10A	Natural	Recycled LDPE	17.92	34	48.7	SAE 18.0
