Product no.

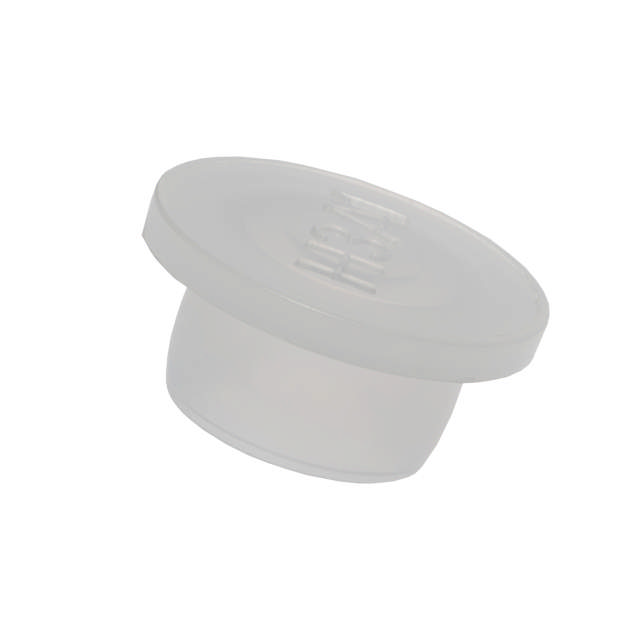

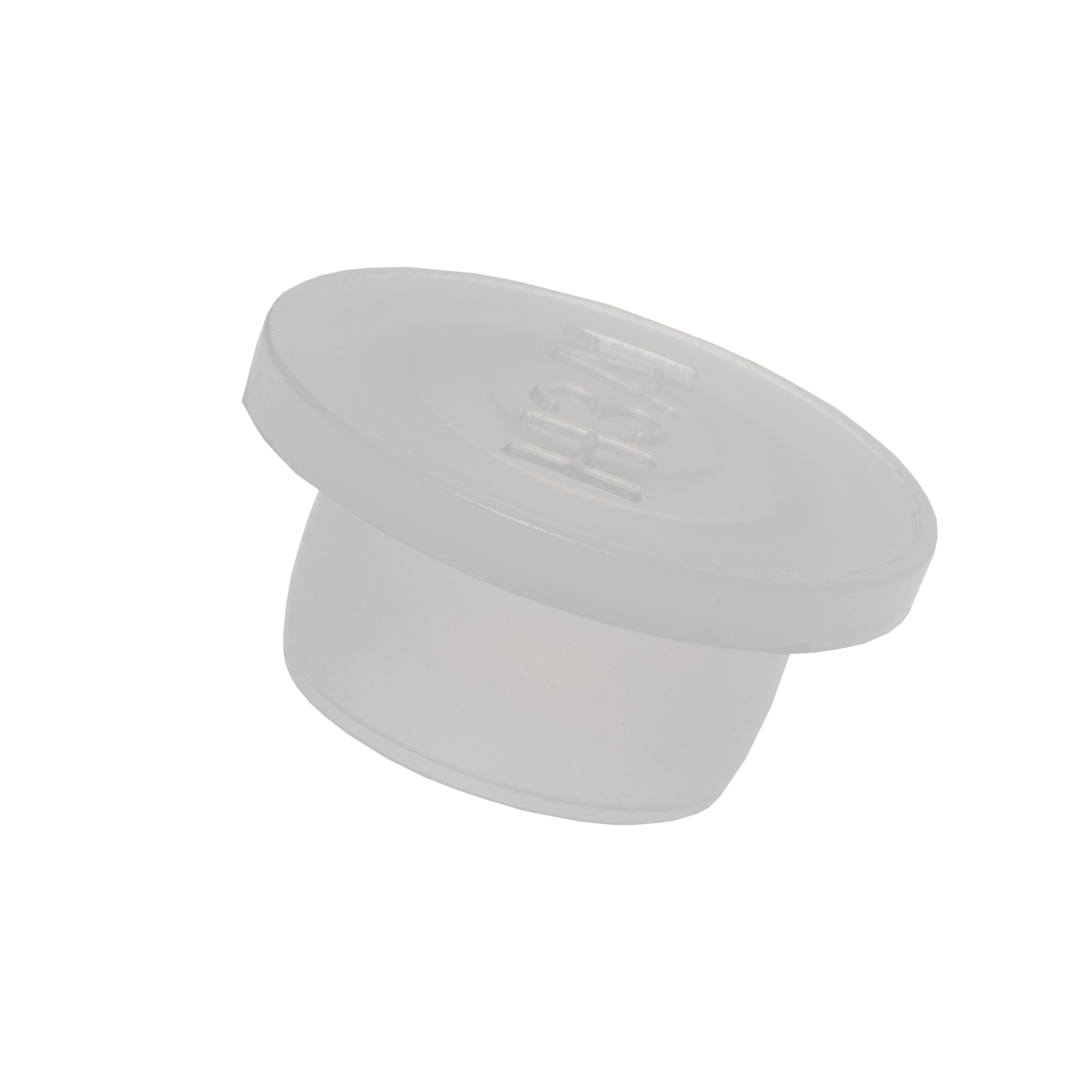

Smooth Cover Plugs (DA)

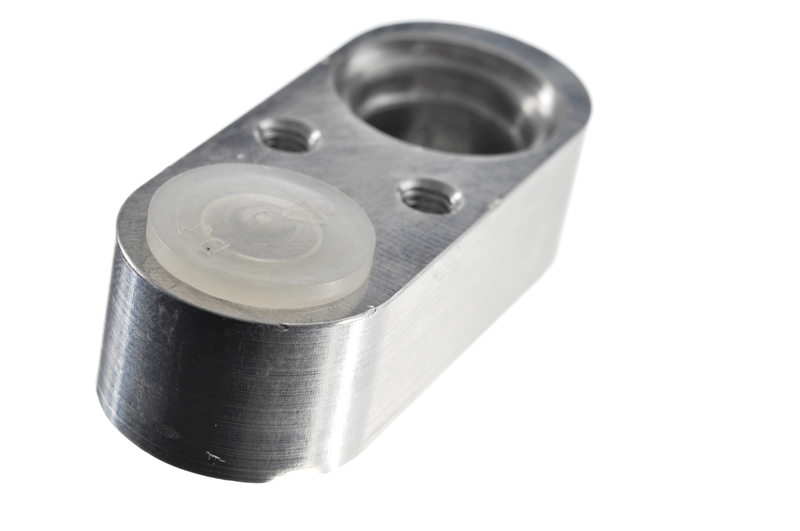

Clean, uniform protection with a smooth finish. Designed to protect holes and internal threads in plate work, DA Smooth Cover Plugs feature a flat head for a sleek, flush surface- perfect when appearance matters.
Ideal for these applications:
All benefits
Easy handling
quick and simple installation
Flat head
ensures sleek, finished appearance
Internal protection
shields holes and threads

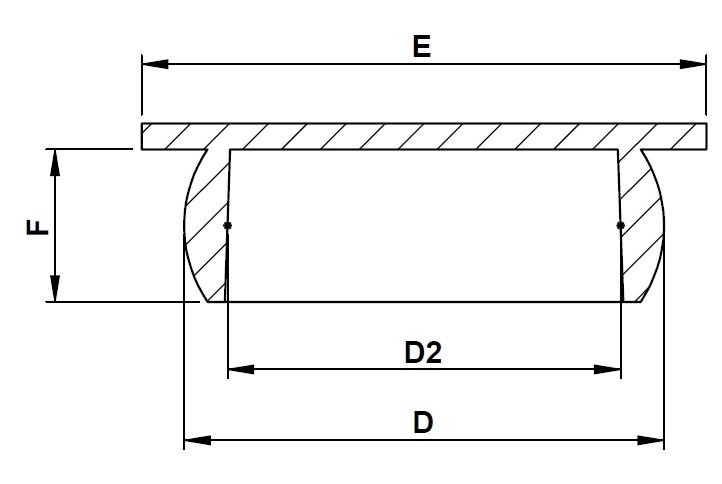

Product specifications
Size unit:
|
|
CO2
|
D
mm
|
D2
mm
|
E
mm
|
F
mm
|
|||
|---|---|---|---|---|---|---|---|---|
| DA0072Z-AA10A | Natural | Recycled LDPE | 0 | 7.2 | 5.2 | 11.2 | 5.5 |
|
| DA0083A-AA10A | Natural | Recycled LDPE | 0 | 8.3 | 4.9 | 10 | 3 |
|
| DA0084Z-AA10A | Natural | Recycled LDPE | 0 | 8.4 | 6.1 | 11 | 5.5 |
|
| DA0091Z-AA10A | Natural | Recycled LDPE | 0 | 9.2 | 7 | 14.4 | 5.5 |
|
| DA0092A-AA10A | Natural | Recycled LDPE | 0 | 9.2 | 6.7 | 14.3 | 5.5 |
|
| DA0101Z-AA10A | Natural | Recycled LDPE | 0 | 10.1 | 8.2 | 14.4 | 5.5 |
|
| DA0106A-AA10A | Natural | Recycled LDPE | 0 | 10.6 | 8.6 | 14.4 | 5.5 |
|
| DA0113A-AA10A | Natural | Recycled LDPE | 0 | 11.3 | 9.5 | 14.4 | 5.5 |
|
| DA0118Z-AA10A | Natural | Recycled LDPE | 0 | 11.8 | 10 | 14.4 | 5.5 |
|
| DA0123A-AA10A | Natural | Recycled LDPE | 0 | 12.2 | 10.2 | 18.4 | 7 |
|
| DA0130Z-AA10A | Natural | Recycled LDPE | 0 | 13 | 11.1 | 18.7 | 7 |
|
| DA0133Z-AA10A | Natural | Recycled LDPE | 0 | 13.3 | 11.4 | 18.7 | 7 |
|
| DA0136Z-AA10A | Natural | Recycled LDPE | 0 | 13.6 | 11.7 | 18.7 | 7 |
|
| DA0140Z-AA10A | Natural | Recycled LDPE | 0 | 14 | 12.1 | 18.7 | 7 |
|
| DA0144A-AA10A | Natural | Recycled LDPE | 0 | 14.4 | 12.3 | 18.7 | 7 |
|
| DA0150Z-AA10A | Natural | Recycled LDPE | 0 | 15 | 12.9 | 18.7 | 7 |
|
| DA0158A-AA10A | Natural | Recycled LDPE | 0 | 15.8 | 13.4 | 18.7 | 7 |
|
| DA0165A-AA10A | Natural | Recycled LDPE | 0 | 16.5 | 14 | 18.7 | 7 |
|
| DA0171A-AA10A | Natural | Recycled LDPE | 0 | 17.1 | 14.7 | 24.2 | 9 |
|
| DA0178Z-AA10A | Natural | Recycled LDPE | 0 | 17.8 | 15.9 | 24.6 | 9 |
|
| DA0185A-AA10A | Natural | Recycled LDPE | 0 | 18.5 | 16.1 | 24.3 | 9 |
|
| DA0189Z-AA10A | Natural | Recycled LDPE | 0 | 18.9 | 16.8 | 24.6 | 9 |
|
| DA0193A-AA10A | Natural | Recycled LDPE | 0 | 19.3 | 17.2 | 24.2 | 9 |
|
| DA0201Z-AA10A | Natural | Recycled LDPE | 0 | 20.1 | 18.1 | 24.6 | 9 |
|
| DA0207Z-AA10A | Natural | Recycled LDPE | 0 | 20.7 | 18.4 | 24.6 | 9 |
|
| DA0212Z-AA10A | Natural | Recycled LDPE | 0 | 21.2 | 19 | 24.6 | 9 |
|
| DA0217Z-AA10A | Natural | Recycled LDPE | 0 | 21.7 | 19.4 | 24.6 | 9 |
|
| DA0224Z-AA10A | Natural | Recycled LDPE | 0 | 22.4 | 20.2 | 24.6 | 10 |
|
| DA0230Z-AA10A | Natural | Recycled LDPE | 0 | 23 | 20.8 | 28.5 | 9 |
|
| DA0239A-AA10A | Natural | Recycled LDPE | 0 | 23.9 | 20.9 | 31.5 | 9.9 |
|
| DA0240A-AA10A | Natural | Recycled LDPE | 0 | 23.7 | 21.7 | 29 | 10 |
|
| DA0246Z-AA10A | Natural | Recycled LDPE | 0 | 24.6 | 22.5 | 28.5 | 10 |
|
| DA0248A-AA10A | Natural | Recycled LDPE | 0 | 24.8 | 22.8 | 28.3 | 9 |
|
| DA0255A-AA10A | Natural | Recycled LDPE | 0 | 25.3 | 22.8 | 28.3 | 8.9 |
|
| DA0265Z-AA10A | Natural | Recycled LDPE | 0 | 26.5 | 24.6 | 28.5 | 9 |
|
| DA0270Z-AA10A | Natural | Recycled LDPE | 0 | 27 | 24.8 | 34.8 | 12 |
|
| DA0275Z-AA10A | Natural | Recycled LDPE | 0 | 27.5 | 25 | 34.8 | 12 |
|
| DA0277A-AA10A | Natural | Recycled LDPE | 0 | 27.7 | 23 | 32.6 | 8.8 |
|
| DA0288Z-AA10A | Natural | Recycled LDPE | 0 | 28.8 | 26.6 | 34.8 | 12 |
|
| DA0305Z-AA10A | Natural | Recycled LDPE | 0 | 30.5 | 27.3 | 34.8 | 12 |
|
| DA0312A-AA10A | Natural | Recycled LDPE | 0 | 31.5 | 27.7 | 34.5 | 11.6 |
|
| DA0326A-AA10A | Natural | Recycled LDPE | 0 | 32.6 | 29 | 34.3 | 12 |
|
| DA0334A-AA10A | Natural | Recycled LDPE | 0 | 33.4 | 30.7 | 35.6 | 12 |
|
| DA0346Z-AA10A | Natural | Recycled LDPE | 0 | 34.6 | 31.6 | 40.4 | 12 |
|
| DA0355Z-AA10A | Natural | Recycled LDPE | 0 | 35.5 | 32.3 | 40.4 | 12 |
|
| DA0390Z-AA10A | Natural | Recycled LDPE | 0 | 39 | 35.3 | 49.3 | 16 |
|
| DA0404A-AA10A | Natural | Recycled LDPE | 0 | 40.4 | 37.1 | 45 | 11.9 |
|
| DA0407Z-AA10A | Natural | Recycled LDPE | 0 | 40.7 | 37 | 49.5 | 16 |
|
| DA0425Z-AA10A | Natural | Recycled LDPE | 0 | 42.5 | 38 | 49.3 | 16 |
|
| DA0467A-AA10A | Natural | Recycled LDPE | 0 | 46.7 | 41.9 | 58.7 | 18 |
|
| DA0515Z-AA10A | Natural | Recycled LDPE | 0 | 51.5 | 47.5 | 58.7 | 18 |
|
| DA0541Z-AA10A | Natural | Recycled LDPE | 0 | 54.1 | 50.2 | 58.7 | 18 |
|
| DA0596A-AA10A | Natural | Recycled LDPE | 0 | 59.6 | 56.2 | 73.5 | 17.5 |
|
| DA0737Z-AA10A | Natural | Recycled LDPE | 0 | 73.7 | 68.7 | 82.3 | 17.4 |
|
| DA0808Z-AA10A | Natural | Recycled LDPE | 0 | 80.8 | 75.8 | 92.5 | 17.4 |
|
| DA0988Z-AA10A | Natural | Recycled LDPE | 0 | 98.8 | 92.5 | 112 | 18 |
|
| DA1117A-AA10A | Natural | Recycled LDPE | 0 | 111.7 | 105.2 | 121.6 | 17.4 |
|
