DETAIL2458 Threaded Metric Plugs for automotive applications

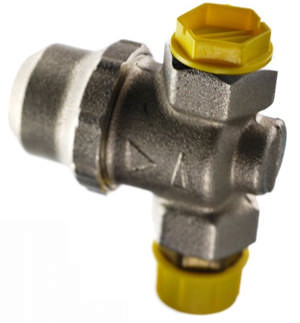

DETAIL2543 Protection of internal threads in hydraulic and steering components
DETAIL2772 Threaded Plugs_drawing
Product no. X0051

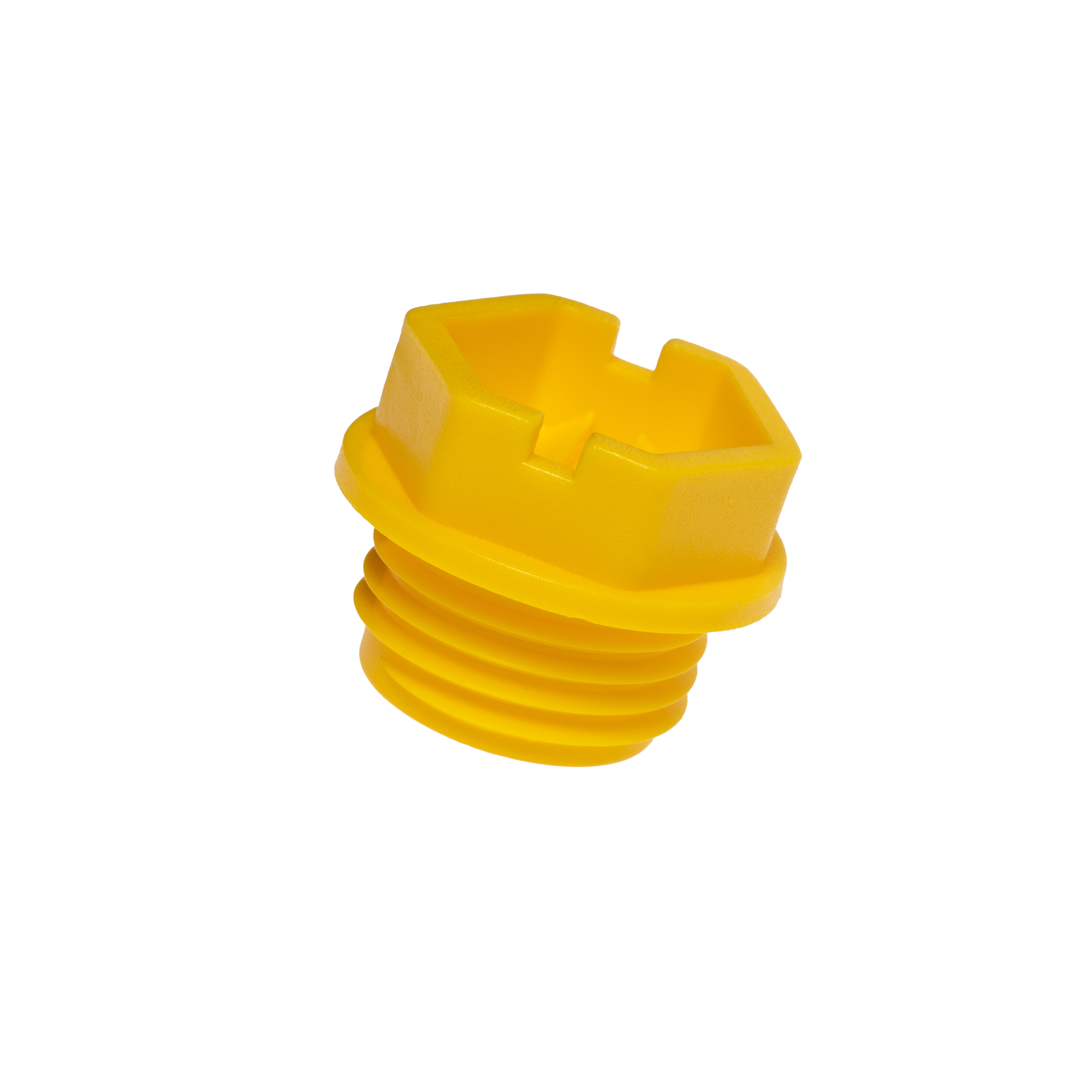

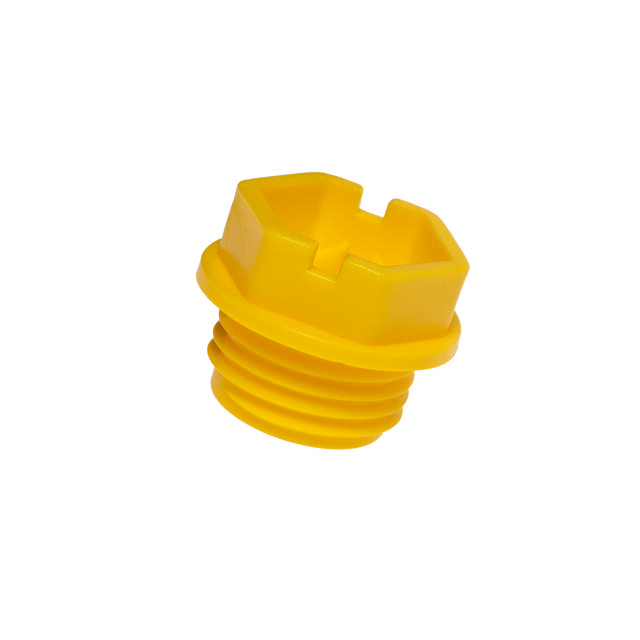

Threaded Metric Plugs (TA)

Designed to protect internal threads in hydraulic and steering components, especially in automotive applications requiring high tightness and pressure resistance.

Try before you decide
Request sample
Variants
View products
In stock
Sign in to buy
All benefits
Material flexibility
supports high temperature/pressure use
Sealing options
available with O-ring or washer
Tool-friendly
hex head for quick tool mounting/removal
Product specifications Applications Value added services
Jump to top
Product specifications
Size unit:

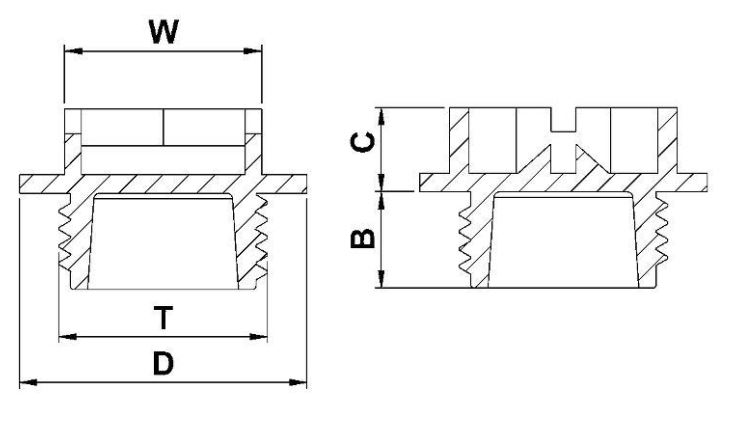

Technical drawing TA range_PDS
CO2
A mm
B mm
C mm
D mm
Fits thread
W mm
TA0801A-EA20A Yellow HDPE 0 0 8.4 7.4 16.6 M8 x 1.25 1212
TA0801B-EA20A Yellow HDPE 0 0 0 0 0 0 0
TA1001A-EA20A Yellow HDPE 0 0 8.5 7.4 16.6 M10 x 1 1212
TA1001A-GA20A Yellow PA66 0 0 8.5 7.4 16.8 M10 x 1 1212
TA1001B-EA20A Yellow HDPE 0 0 8.5 7.4 16.6 M10 x 1 1212
TA1001B-GA20A Yellow PA66 0 0 8.5 7.4 16.8 M10 x 1 1212
TA1001C-EA20A Yellow HDPE 0 0 8.5 7.4 16.6 M10 x 1 1212
TA1002A-EA20A Yellow HDPE 0 0 8.5 7.4 16.6 M10 x 1.5 1212
TA1002A-GA10A Natural PA66 0 0 8.5 7.4 16.8 M10 x 1.5 1212
TA1002B-EA20A Yellow HDPE 0 0 8.5 7.4 16.6 M10 x 1.5 1212
TA1002B-GA10A Natural PA66 0 0 8.5 7.4 16.8 M10 x 1.5 1212
TA1003A-EA20A Yellow HDPE 0 0 8.5 7.5 20.6 M10 x 1 1717
TA1003A-GA10A Natural PA66 0 0 8.5 7.1 20.9 M10 x 1 1717
TA1003B-EA20A Yellow HDPE 0 0 8.5 7.5 20.6 M10 x 1 1717
TA1003B-GA10A Natural PA66 0 0 8.5 7.1 20.9 M10 x 1 1717
TA1201A-EA20A Yellow HDPE 0 0 8.1 7.3 17.8 M12 x 1.5 1414
TA1201B-EA20A Yellow HDPE 0 0 8.1 7.3 17.8 M12 x 1.5 1414
TA1202A-EA20A Yellow HDPE 0 0 8.1 7.5 20.6 M12 x 1.5 1717
TA1202A-GA10A Natural PA66 0 0 8.3 7.3 21.1 M12 x 1.5 1717
TA1202B-GA10A Natural PA66 0 0 8.3 7.3 21.1 M12 x 1.5 1717
TA1202B-GA20A Yellow 0 0 8.3 7.3 21.1 M12 x 1.5 1717
TA1203A-EA20A Yellow HDPE 0 0 8.5 7.5 20.6 M12 x 1.75 1717
TA1204A-EA20A Yellow HDPE 0 0 8 7 20.6 M12 x 1 1717
TA1299A-AA20A Yellow Recycled LDPE 0 0 11 6 19 M12 x 1 0
TA1401A-EA20A Yellow HDPE 0 0 8.1 7 20.6 M14 x 1.5 1717
TA1401A-GA10A Natural PA66 0 0 8.3 7.5 21 M14 x 1.5 1717
TA1401B-EA20A Yellow HDPE 0 0 8.1 7 20.6 M14 x 1.5 1717
TA1401B-GA10A Natural PA66 0 0 8.3 7.5 21 M14 x 1.5 1717
TA1401B-GA20A Yellow 0 0 8.3 7.5 21 M14 x 1.5 1717
TA1401C-EA20A Yellow HDPE 0 0 8.1 7 20.6 M14 x 1.5 1717
TA1401C-GA40A Black PA66 0 0 8.3 7.5 21 M14 x 1.5 1717
TA1403A-EA20A Yellow HDPE 0 0 8.1 7.2 26.5 M14 x 1.5 2222
TA1403B-EA20A Yellow HDPE 0 0 8.1 7.2 26.5 M14 x 1.5 2222
TA1601A-EA20A Yellow HDPE 0 0 8.5 7.5 20.6 M16 x 1.5 1717
TA1601A-GA10A Natural PA66 0 0 8.5 7.4 21.1 M16 x 1.5 1717
TA1601B-GA10A Natural PA66 0 0 8.5 7.4 21.1 M16 x 1.5 1717
TA1601C-EA20A Yellow HDPE 0 0 8.5 7.5 20.6 M16 x 1.5 1717
TA1601D-GA10A Natural PA66 0 0 8.5 7.4 21.1 M16 x 1.5 1717
TA1603A-EA20A Yellow HDPE 0 0 8.5 7.5 22.8 M16 x 1.5 1717
TA1603B-EA20A Yellow HDPE 0 0 8.5 7.5 22.8 M16 x 1.5 1717
TA1604A-EA20A Yellow HDPE 0 0 8.4 7.5 25 M16 x 2 1717
TA1604B-EA20A Yellow HDPE 0 0 0 0 0 0 0
TA1605A-GA10A Natural PA66 0 0 8.4 7.5 28.7 M16 x 1.5 2222
TA1605B-GA10A Natural PA66 0 0 8.4 7.5 28.7 M16 x 1.5 2222
TA1606A-EA20A Yellow HDPE 0 0 8.4 7.5 45 M16 x 2 3232
TA1607A-GA10A Natural PA66 0 0 8.4 7.3 24.8 M16 x 1.5 1717
TA1607B-GA10A Natural PA66 0 0 8.4 7.3 24.8 M16 x 1.5 1717
TA1607B-GA20A Yellow 0 0 8.4 7.3 24.8 0 1717
TA1607D-GA10A Natural PA66 0 0 8.4 7.3 24.8 M16 x 1.5 1717
TA1608A-GA20A Yellow PA66 0 0 14.9 7.3 24.9 M16 x 2 1717
TA1608C-GA20A Yellow PA66 0 0 14.9 7.3 24.9 M16 x 2 1717
TA1801A-EA20A Yellow HDPE 0 0 8 7.5 20.6 M18 x 1.5 169169
TA1801C-EA20A Yellow HDPE 0 0 8 7.5 20.6 M18 x 1.5 169169
TA1802A-GA10A Natural PA66 0 0 8.3 7.3 24.8 M18 x 1.5 1717
TA1802B-GA10A Natural PA66 0 0 8.3 7.3 24.8 M18 x 1.5 1717
TA1803A-EA20A Yellow HDPE 0 0 8.1 7.5 25.2 M18 x 1.5 1717
TA1804A-EA20A Yellow HDPE 0 0 7.8 7.4 26.5 M18 x 1.5 216216
TA1804B-EA20A Yellow HDPE 0 0 7.8 7.4 26.5 M18 x 1.5 216216
TA1805A-GA10A Natural PA66 0 0 8.3 7.5 28.8 M18 x 1.5 2222
TA1805B-GA10A Natural PA66 0 0 8.3 7.5 28.8 M18 x 1.5 2222
TA1805B-GA20A Yellow 0 0 8.3 7.5 28.8 M18 x 1.5 2222
TA1806A-GA40A Black PA66 0 0 8.2 7.5 32.3 M18 x 1.5 2222
TA1806B-GA40A Black PA66 0 0 8.2 7.5 32.3 M18 x 1.5 2222
TA2001A-EA20A Yellow HDPE 0 0 8.3 7.2 26.5 M20 x 1.5 2222
TA2001A-GA10A Natural PA66 0 0 8.5 7.5 27.1 M20 x 1.5 2222
TA2001B-GA10A Natural PA66 0 0 8.5 7.5 27.1 M20 x 1.5 2222
TA2002A-EA20A Yellow HDPE 0 0 8.5 7.5 28.5 M20 x 2.5 2222
TA2201A-EA20A Yellow HDPE 0 0 8.3 7.5 26.5 M22 x 1.5 2222
TA2201B-EA20A Yellow HDPE 0 0 8.3 7.5 26.5 M22 x 1.5 2222
TA2201B-GA20A Yellow PA66 0 0 8.3 7.3 26.8 M22 x 1.5 2222
TA2202A-EA20A Yellow HDPE 0 0 8.3 7.3 28.3 M22 x 1.5 2222
TA2202A-GA10A Natural PA66 0 0 8.3 7.5 28.8 M22 x 1.5 2222
TA2202B-EA20A Yellow HDPE 0 0 8.3 7.3 28.3 M22 x 1.5 2222
TA2202B-GA10A Natural PA66 0 0 8.3 7.5 28.8 M22 x 1.5 2222
TA2202B-GA20A Yellow PA66 0 0 8.3 7.5 28.8 M22 x 1.5 2222
TA2202B-GA60A Green PA66 0 0 8.3 7.5 28.8 M22 x 1.5 2222
TA2203A-GA10A Natural PA66 0 0 8.3 7.2 32.3 M22 x 1.5 2222
TA2203B-GA00A Red PA66 0 0 8.3 7.2 32.3 M22 x 1.5 2222
TA2203C-GA00A Red PA66 0 0 8.3 7.2 32.3 M22 x 1.5 2222
TA2204A-GA20A Yellow PA66 0 0 8.2 7.5 35 M22 x 1.5 2727
TA2204B-GA20A Yellow PA66 0 0 8.2 7.5 35 M22 x 1.5 2727
TA2401A-EA20A Yellow HDPE 0 0 8.3 7.5 26.5 M24 x 1.5 2222
TA2601A-EA20A Yellow HDPE 0 0 8.3 7.5 34.5 M26 x 1.5 266266
TA2601A-GA10A Natural PA66 0 0 8.5 7.7 35 M26 x 1.5 2727
TA2601B-EA20A Yellow HDPE 0 0 8.3 7.5 34.5 M26 x 1.5 266266
TA2601B-GA10A Natural PA66 0 0 8.5 7.7 35 M26 x 1.5 2727
TA2601B-GA20A Yellow 0 0 8.5 7.7 35 M26 x 1.5 2727
TA2602A-EA20A Yellow HDPE 0 0 8.3 7.5 26.5 M26 x 1.5 2222
TA2701A-EA20A Yellow HDPE 0 0 11.5 7.5 32.5 M27 x 2 2727
TA2701B-EA20A Yellow HDPE 0 0 11.5 7.5 32.5 M27 x 2 2727
TA2702A-EA20A Yellow HDPE 0 0 8.5 7.5 35 M27 x 2 2727
TA2702A-GA20A Yellow PA66 0 0 8.5 7.5 35 M27 x 2 2727
TA2702B-EA20A Yellow HDPE 0 0 8.5 7.5 35 M27 x 2 2727
TA2702B-GA20A Yellow PA66 0 0 8.5 7.5 35 M27 x 2 2727
TA2703B-GA60A Green PA66 0 0 11.6 7.6 35 M27 x 2 2727
TA2703E-GA20A Yellow 0 0 11.6 7.6 35 M27 x 2 2727
TA2798A-AA20A Yellow Recycled LDPE 0 0 13 7 34 M27 x 1.5 0
TA2801A-EA20A Yellow HDPE 0 0 12 7.5 35 M28 x 1.5 2727
TA3001A-EA20A Yellow HDPE 0 0 8.3 7.5 35 M30 x 2 2727
TA3002A-EA20A Yellow HDPE 0 0 8.3 7.3 38 M30 x 1.5 3131
TA3010A-GA10B Natural PA66 0 28.1 31.7 0 0 0 0
TA3010C-GA10B Natural PA66 0 28.1 31.7 0 0 0 0
TA3301A-EA20A Yellow HDPE 0 0 8 7.5 38.5 M33 x 2 3232
TA3302A-EA20A Yellow HDPE 0 0 13.2 7.5 41.2 M33 x 2 3232
TA3302A-GA10A Natural PA66 0 0 13.6 7.5 41.7 M33 x 2 3232
TA3303A-GA20A Yellow PA66 0 0 13.5 7.5 41.5 M33 x 2 318318
TA3303B-GA20A Yellow PA66 0 0 13.5 7.5 41.5 M33 x 2 318318
TA3303D-GA20A Yellow PA66 0 0 13.5 7.5 41.5 M33 x 2 318318
TA3303D-GA60A Green PA66 0 0 13.5 7.5 41.5 M33 x 2 318318
TA3399A-AA20A Yellow Recycled LDPE 0 0 14 7 42 M33 x 1.5 0
TA3601A-EA20A Yellow HDPE 0 0 9.3 7.2 44 M36 x 2 3232
TA3699A-AA20A Yellow Recycled LDPE 0 0 15.2 10 43.5 M36 x 1.5 0
TA3899A-EA20A Yellow HDPE 0 0 8 5.5 44 M38 x 1.5 0
TA4201A-EA20A Yellow HDPE 0 0 8.6 8.3 53 M42 x 2 3636
TA4598A-AA20A Yellow Recycled LDPE 0 0 15 10 60 M45 x 2 0
TA4598A-EA20A Yellow HDPE 0 0 9 5.5 52 M45 x 2 0
TA5201A-EA20A Yellow HDPE 0 0 9.5 8.6 59.3 M52 x 2 3636
