Product no. X0026
HV Solution for Hirschmann PowerStar Connectors (EH)

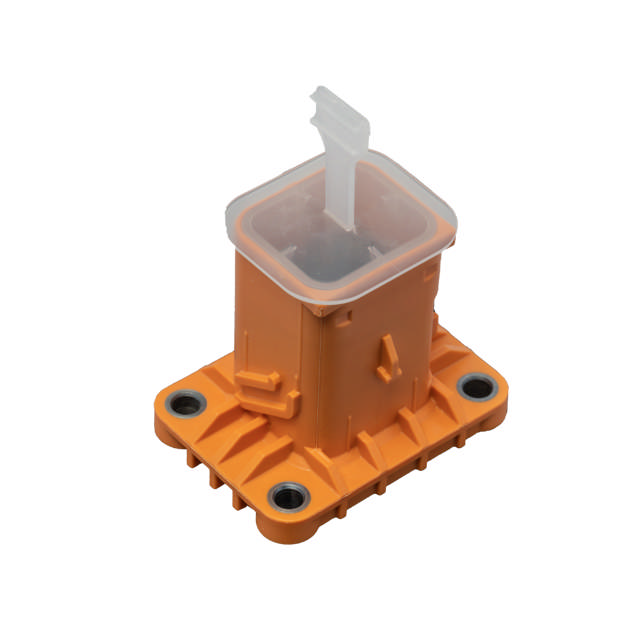

Reliable protection for high-voltage Hirschmann PowerStar Connectors.

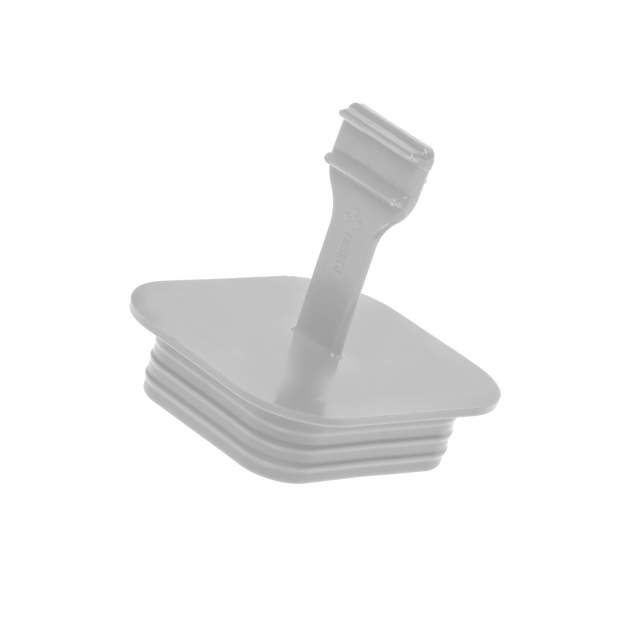

This EH range covers plugs in round or square designs, with or without handles. Three internal ribs protect against dust, liquids, vibration, and mechanical damage- ideal for safeguarding high-voltage sockets and pins.
Ideal for these applications:
All benefits
Glove-friendly
easy grip for quick handling
Strong seal
protects against dust, vibration, and damage
Versatile fit
supports major HV connector systems
|
|
CO2
|

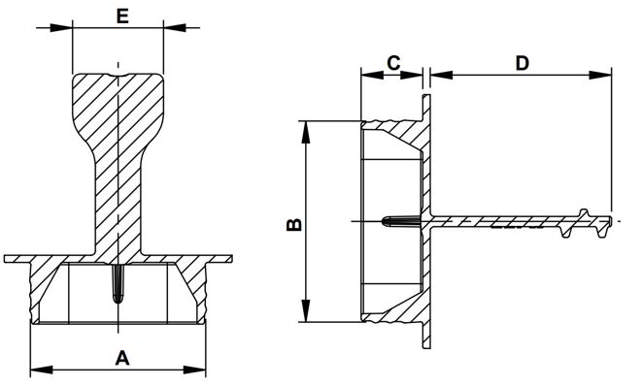

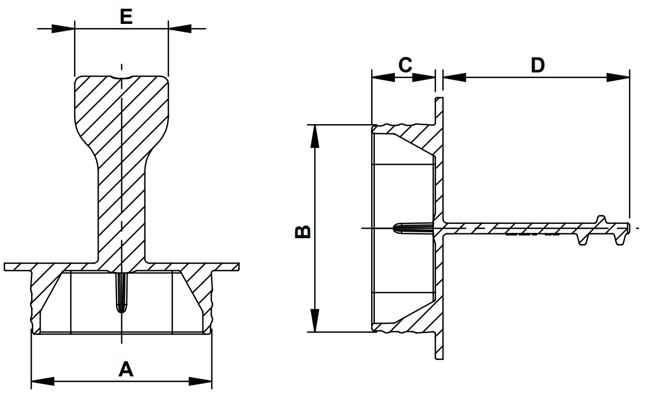

A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
Suitable For Connector Family
|
|---|
| EH0220A-AA90A | Blue | 0 | 22.24 | 0 | 8.5 | 25 | 12.5 | 0 |
|
|
| EH0220B-AA90A | Blue | 0 | 22.24 | 0 | 8.5 | 0 | 0 | 0 |
|
|
| EH0274A-AA90A | Blue | 0 | 24.24 | 27.89 | 8.5 | 25 | 12.5 | 0 |
|
|
| EH0274B-AA90A | Blue | 0 | 24.24 | 27.89 | 8.5 | 0 | 0 | 0 |
|
|

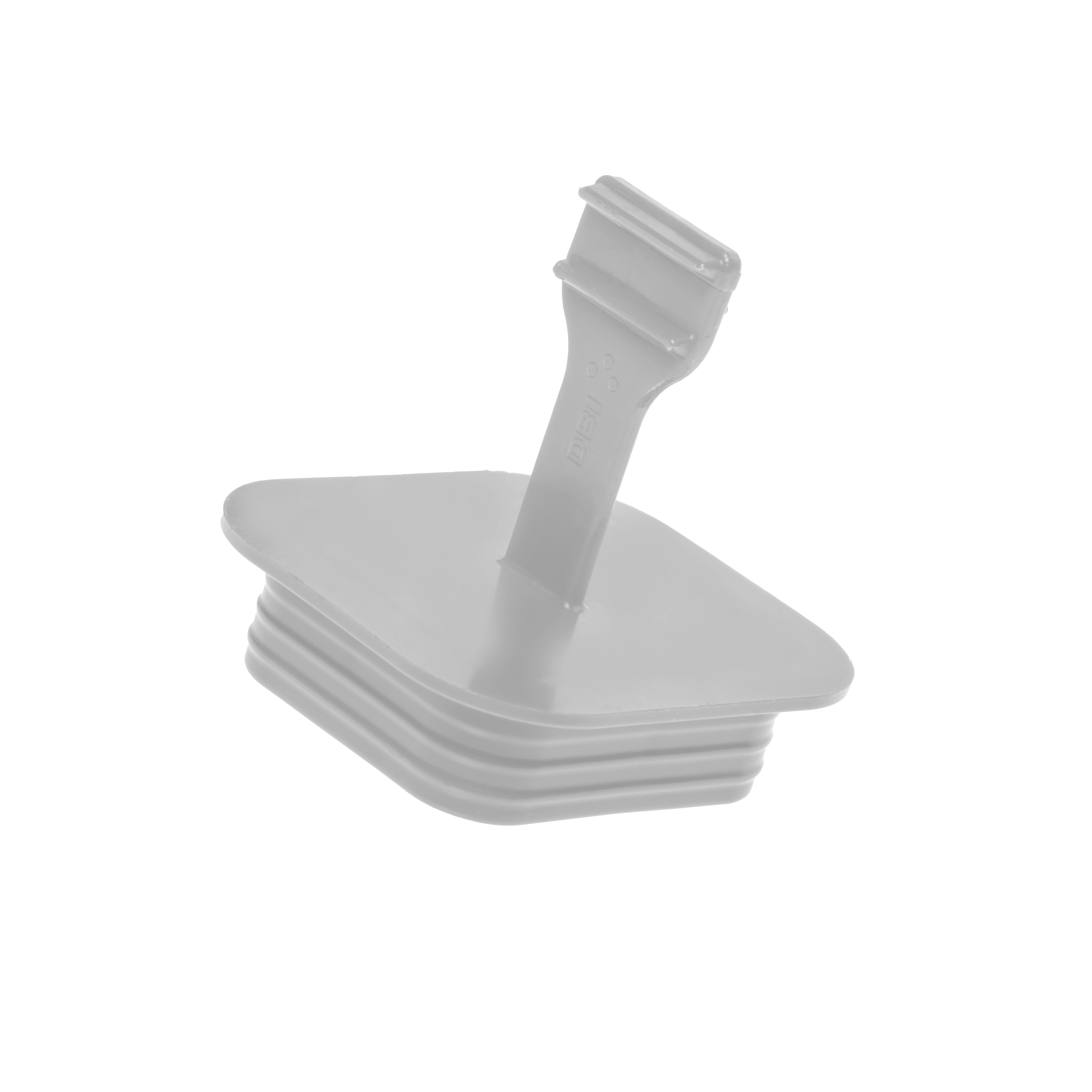

| EH0274A-AA10A | Natural | Recycled LDPE | 0 | 24.24 | 27.89 | 8.5 | 25 | 12.5 | HPS40 4+2 (squared) |
|
| EH0220A-AA10A | Natural | Recycled LDPE | 0 | 22.24 | 0 | 8.5 | 25 | 12.5 | HPS40-2 (round) |
|
